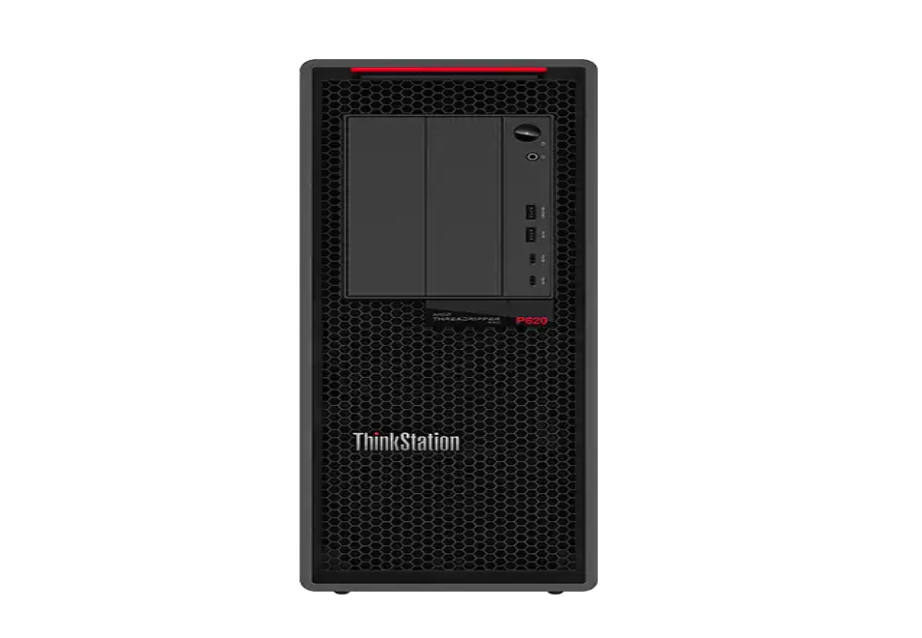

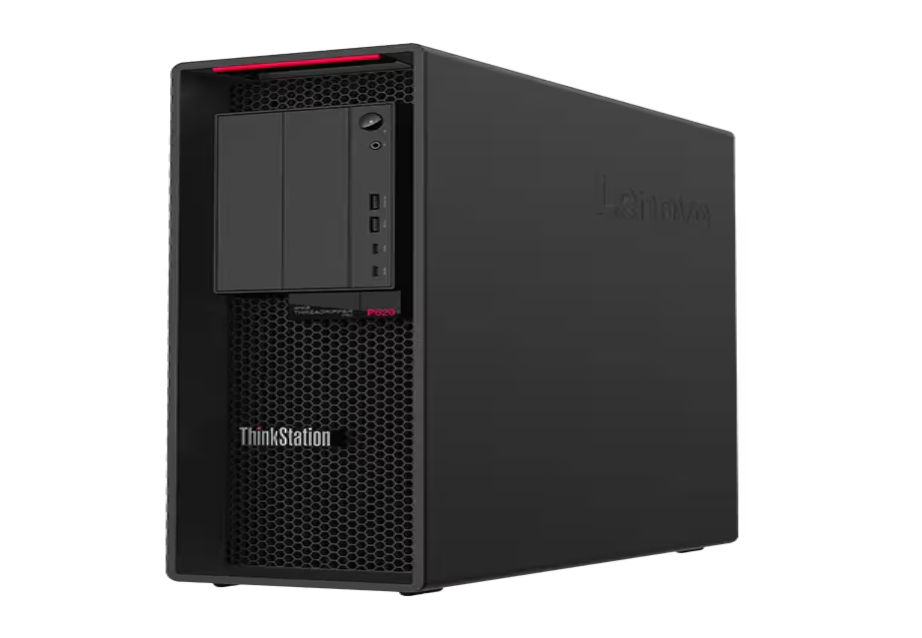

ThinkStation P620

share to:

Lenovo ThinkStation P620 is the world’s first flagship workstation equipped with AMD Threadripper PRO processor, with 64 core 128 threads AMD Threadripper PRO 3995WX (main frequency 2.7GHz, Accelerated to 4.0GHz) and the NVIDIA RTX A6000 Professional graphics card (48GB of video memory), making it the performance benchmark for multithreaded computing and graphics processing. The core configuration includes 256GB DDR4 3200MHz memory (up to 2TB 8-channel expansion) and 1TB PCIe 4.0 SSD+4TB HDD hybrid storage, which meets the requirements of mass data processing and high-speed read and write

Introduction

Power that can’t be beat

This AMD technology gives the P620 up to 64 cores and 128 threads—all from a single CPU. Simply put, other workstations would need at least two CPUs to accomplish what the P620 with AMD Ryzen™ Threadripper™ PRO can do with one.



Highly configurable

The ThinkStation P620 workstation tower is equipped with abundant storage and memory capacity, numerous expansion slots, enterprise-class AMD Ryzen PRO manageability, and security features. With unprecedented NVIDIA® graphics support, this eminently configurable workstation is equipped with up to two NVIDIA® RTX™ A6000, up to two NVIDIA® Quadro RTX™ 8000, or up to four NVIDIA® Quadro RTX™ 4000 GPUs.



Cool & accessible

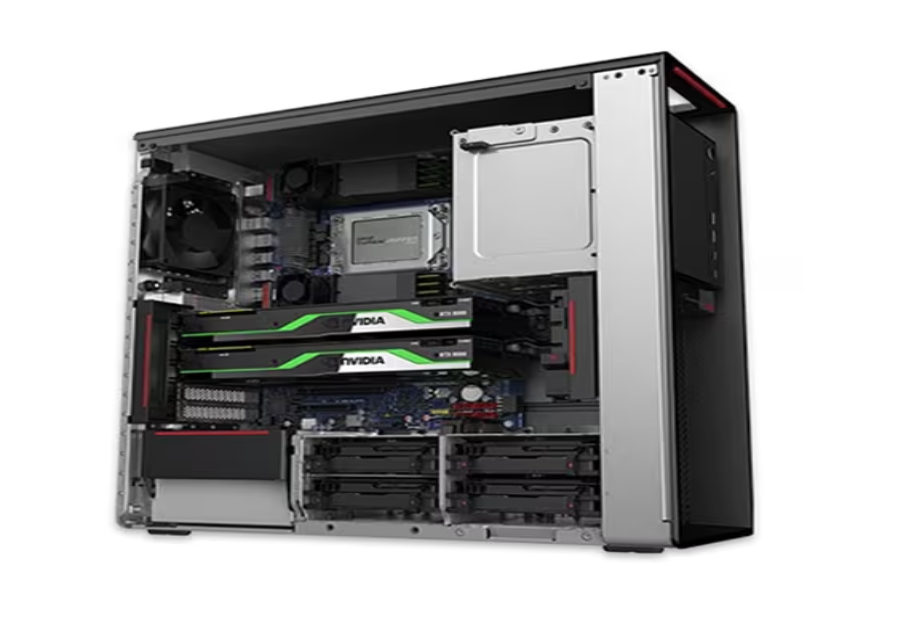

An air-cooled thermal system helps ensure the ThinkStation P620 tower runs well in any location, allowing the CPUs and GPUs to stay cool while running at peak performance until the job is done. What’s more, tool-less accessibility to the chassis enables easy upgrades if needed.



Handles complex workloads with ease

With independent software vendor (ISV) certifications, the P620 workstation works across the full range of industry verticals including Architecture, Engineering, & Construction, Media & Entertainment, Healthcare / Life Science, Oil & Gas / Energy, Finance, and AI / VR. It’s perfect for multithreaded compute-intensive applications used by architects, engineers, scientists, geophysicists, and more.



Seamless security. Smarter security.

ThinkShield, our built-in suite of security solutions, keeps your ThinkStation P620 tower and your critical data safe. The Trusted Platform Module (TPM) firmware uses encryption to significantly decrease the possibility of hacking. You can relax knowing that serial, parallel, USB, audio, and network ports can all be disabled. Plus, set up a BIOS password as well as a power-on password to ensure access remains restricted. For additional physical security, choose the optional Side-Cover Key Lock Kit to prevent access to the system.

Specifications

Tech Specs
Processor Up to AMD Ryzen™ Threadripper™ PRO 5995WX processor (2.70GHz, up to 4.5GHz Max Boost, 64 Cores, 128 Threads, 256MB Cache)
Operating System Up to Windows 11 Pro
Ubuntu® Linux® (select versions available via preload)
Red Hat® Enterprise Linux® (certified)
Memory Up to 64GB DDR4 3200MHz ECC
8 DIMM slots
Supports up to 512GB total
Storage Up to 6 total drives
Up to 2 x 2TB M.2
Up to 4 x 4TB 3.5″
RAID: Onboard M.2 0/1; SATA 0/1/5/10
Graphics NVIDIA® GV100 32GB
NVIDIA® RTX™ A6000 48GB
NVIDIA® RTX™ A5000 24GB
NVIDIA® RTX™ A4500 20GB
NVIDIA® RTX™ A4000 16GB
NVIDIA® RTX™ A2000 6GB
NVIDIA® RTX™ 8000 48GB
NVIDIA® RTX™ 6000 24GB
NVIDIA® RTX™ 5000 16GB
NVIDIA® RTX™ 4000 8GB
NVIDIA® T1000 4GB
NVIDIA® T600 4GB
NVIDIA® T400 4GB
NVIDIA® P1000 4GB
AMD Radeon™ Pro W5700 8GB
AMD Radeon™ Pro W5500 8GB
AMD Radeon™ Pro WX3200 4GB
AMD Radeon™ Pro W5500 8GB
Connectivity Intel PCIe WiFi card with Bluetooth® external antenna kit (9260 AC)
Ports/Slots Front
2 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 2 Type-C
Microphone/Headphone Combo Jack

Rear
4 x USB 3.2 Gen 2 Type-A
2 x USB 2.0 Type-A
2 x PS/2
RJ45 10Gb Ethernet
Audio in
Audio out
Microphone in

Expansion Slots 4 x PCIe 4.0 x 16 Gen 4
Security Trusted Platform Module (TPM 2.0)
Port control disablement for serial, parallel, USB, audio, & network
Power-on password
BIOS setup password
Optional: Side-Cover Key Lock Kit
ISV Certifications Adobe®
Altair®
Autodesk®
AVEVA™
AVID®
Barco®
Bentley®
Dassault®
Eizo®
McKesson®
Nemetschek®
PTC®
Siemens®
Green Certifications ENERGY STAR® 8.0
EPEAT®
GREENGUARD®
RoHS Compliant
80 PLUS® Platinum
Dimensions (H x W x D) 440mm x 165mm x 460mm / 17.3″ x 6.5″ x 18.1″
Weight Max configuration: 24kg / 52.91lb
Power Supply Unit 1000W
92% efficient
