Lenovo ThinkStation PX

share to:

Lenovo ThinkStation PX is a flagship workstation for professional computing and high-end graphics processing design. With strong hardware configuration and stability, it has become a performance benchmark in AI development, 3D modeling and scientific research. It is equipped with Intel 4410T processor (multi-core architecture, supporting efficient parallel computing), 128GB large-capacity memory and 1TB SSD+4TB HDD hybrid storage combination, taking into account high-speed computing response and massive data storage requirements 2. The graphics card adopts NVIDIA RTX A5000 professional graphics card (24GB video memory), supports real-time ray tracing and complex graphics rendering, and can efficiently complete tasks such as film and TV special effects, industrial design and scientific simulation

Introduction

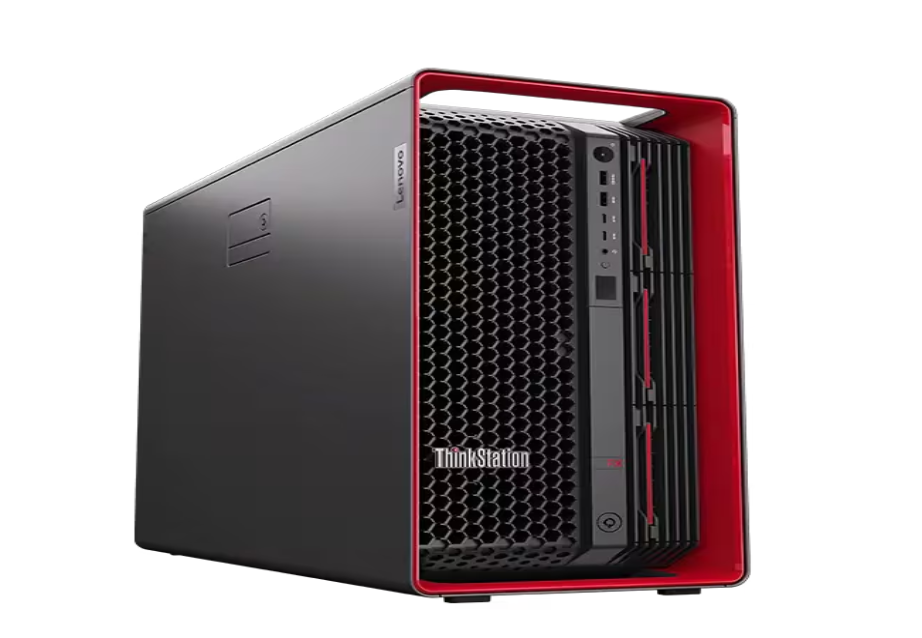

Iconic chassis, co-designed with Aston Martin

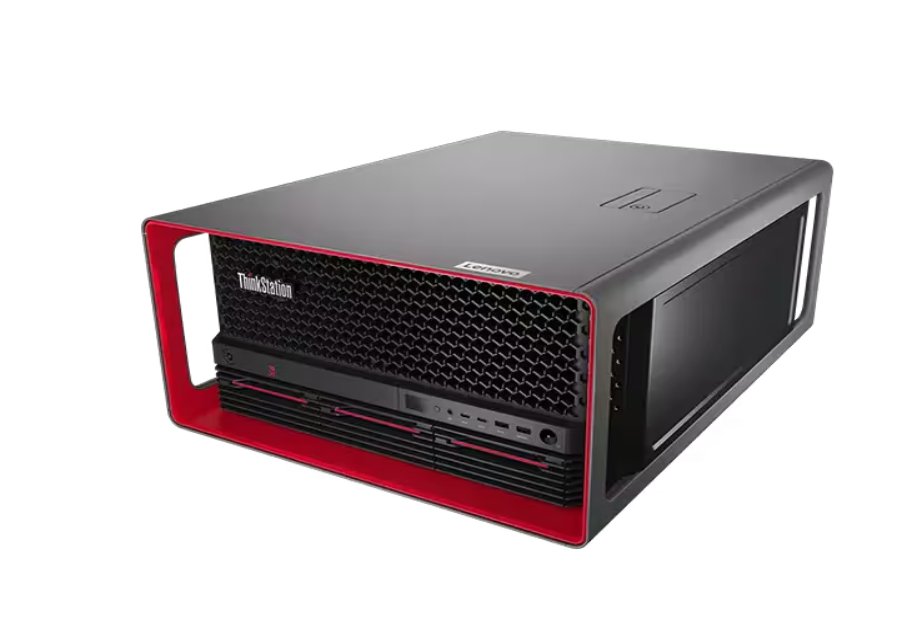

The Lenovo ThinkStation PX breaks the mold when it comes to workstations. Co-designed with Aston Martin, masters of racing car design and aerodynamics, the PX introduces an iconic, modular build that offers more accessibility than ever before. Comprising a stylish chassis with eye-catching red components, an enhanced thermal architecture for maximum performance, and rack-optimization flexibility, the PX is the pinnacle of Lenovo workstation technology.



Redefining the art of what’s possible

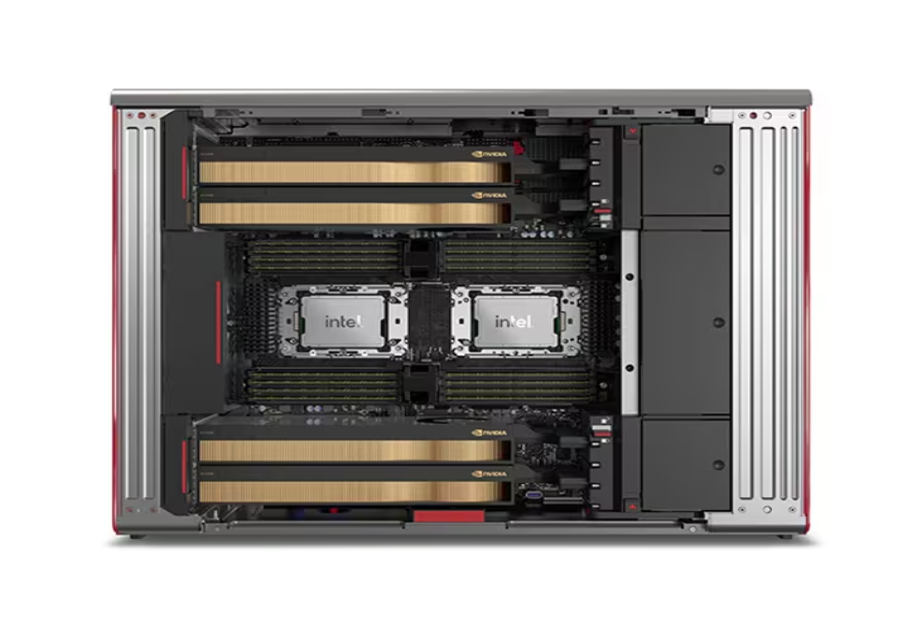

Bridging the gap where previous solutions have fallen short, the ThinkStation PX tower sets a new standard in workstation capabilities. It’s packed with ultra-high-end features, including the latest Intel® Xeon® scalable dual processors and support for up to four optional NVIDIA® RTX™ discrete graphics cards, plus heaps of high-speed DDR5 memory and PCIe storage. The result? A workstation that goes beyond the limits of desktop performance to power even the most extreme workloads.



Unravels even the most complex workflows

Whether it’s sat deskside or in the data center, the ThinkStation PX workstation enables professionals across any industry to vastly improve and expand their workflows. It zips through everything, from real-time rendering and virtual production to machine and deep learning to powering virtual workstations and metaverse exploration. And with an extensive list of ISV-certified applications, you can rest assured that your most complex projects can be executed with ease.



Designed with the future in mind

The ThinkStation PX boasts an innovative modular design with front access hot-swap drives that require no tools to modify, upgrade, or expand. It also has the  option of a dual redundant power supply to mitigate the risk of downtime when running mission-critical applications. In addition, supporting Lenovo’s goal to reach net-zero emissions, this workstation is EPEAT Gold registered, ensuring it was manufactured to the highest environmental standards. It also comes with a USB mouse and keyboard.



It’s got your back

The ThinkStation PX workstation comes with ThinkShield—a suite of essential hardware and software security solutions that work together to safeguard both your workstation and your data. It includes the Trusted Platform Module (TPM) to encrypt your data, plus various programs to prevent unauthorized access to the BIOS—and even self-heal the BIOS should it become corrupt or is maliciously attacked. In addition, the PX supports Windows firmware updates for extra peace of mind.

Specifications

Tech Specs
PERFORMANCE
Processor Up to Intel vPro® with 2 x Intel®Xeon®Platinum 8592+ (each with 64 Cores, 1.9GHz, 320MB Cache, 350W)
Operating System Windows 11 Pro for Workstations
Ubuntu Linux®*
Red Hat®Enterprise Linux®(certified)
Graphics Optional: Choose up to 4 in total:
NVIDIA® A800 (40GB GDDR6) Active
NVIDIA®RTX™ 6000 Ada (48GB GDDR6)
NVIDIA®RTX™ A6000 (48GB GDDR6)
NVIDIA®RTX™ A5500 (24GB GDDR6)
NVIDIA®RTX™ A4500 (20GB GDDR6)
NVIDIA®RTX™ A2000 (12GB GDDR6)
NVIDIA® RTX™ A1000 (8GB GDDR6)
NVIDIA® RTX™ A400 (4GB GDDR6)
NVIDIA®T1000 (8GB GDDR6)
NVIDIA®T400 (4GB GDDR6)
Memory Up to 2TB DDR5 5600MHz*
Storage Up to 9 drives in total:
Supports up to 7 maximum, 4TB M.2 NVMe PCIe SSD
Supports up to 2 maximum, 12TB 3.5″ SATA 7200rpm
Or
Up to 7 drives in total:
Supports up to 3 maximum, 4TB M.2 NVMe PCIe SSD
Supports up to 4 maximum, 12TB 3.5″ SATA 7200rpm
RAID M.2 = 0 / 1 / 10 / 5
SATA = 0 / 1 / 10 / 5
Audio Realtek®
CONNECTIVITY
Ports/Slots Front:
Headphone / mic combo

Optional Front:
2 x USB-A (USB 10Gbps, 1 x always on)
2 x USB-C® (USB 10Gbps)

Rear:
USB-C® (USB 20Gbps)
4 x USB-A (USB 10Gbps)
2 x USB 2.0 (Hi-Speed USB)
2 x Ethernet (RJ45, 1 x 1Gbps, 1 x 10Gbps)
Line in
Line out

Optional Rear:
Serial

Network Onboard Ethernet
Intel® Ethernet I219-LM

Optional Ethernet
Bitland RTL8168H 1000M PCIE Ethernet Adapter
Intel®I210-T1 Single Port Gigabit Ethernet Adapter
Intel®I350-T2 Dual Port Gigabit Ethernet Adapter
Intel®I350-T4 Quad Port Gigabit Ethernet Adapter
Internal WiFi Antenna

Optional WLAN
Intel®WiFi 6E AX211 (2x2ax)* with vPro + Bluetooth®5.2

DESIGN
Dimensions (H x W x D) 435mm x 220mm x 575mm / 17.1″ x 8.7″ x 22.6″
Weight Up to 38kg / 83.8lbs
Color Black with iconic ThinkPad red components
SUSTAINABILITY
Material System
65% post-consumer content (PCC) recycled plastic in front and rear bezel
35% PCC recycled plastic inside the chassis

Packaging
Carton: 90% recycled and/or FSC certified content*
Cushion: 90% recycled EPE

Certifications / Registries ENERGY STAR®8.0 *
EPEAT®Gold, where applicable**
RoHS Compliant
TCO 9.0
80 Plus Platinum Power Supply
OTHER INFORMATION
ThinkShield Security Trusted Platform Module (TPM) 2.0, TCG certified
Self-healing BIOS
Supervisor (blocks & prevents access to BIOS setup data)
System Management Password (functions similar to Supervisor but with less authority)
Power-on Password (prompts for password directly after pressing the power button)
Firmware Resiliency
UEFI secure boot support
HDD password protection for HDD data
Windows UEFI firmware update support
Windows Device Guard support
Smart USB Protection
Chassis Intrusion Switch
Kensington Security Slot™
Optional: Access panel lock, padlock loop, BIOS Guard, Boot Guard
Power Supply Up to 2 x 1850W (92% efficient)
Optional: Redundant power supplies*
ISV Certifications Adobe®
Altair®
ANSYS®
Autodesk®
AVID®
Barco®
Bentley®
Dassault®
McKesson®
Nemetschek®
PTC®
Siemens®
Preloaded Software Lenovo Commercial Vantage (with Windows OS only)
Office 365 trial (with Windows OS only)
What’s in the Box ThinkStation PX Workstation
1850W AC adapter
USB Keyboard
USB Mouse
Quick start guide
