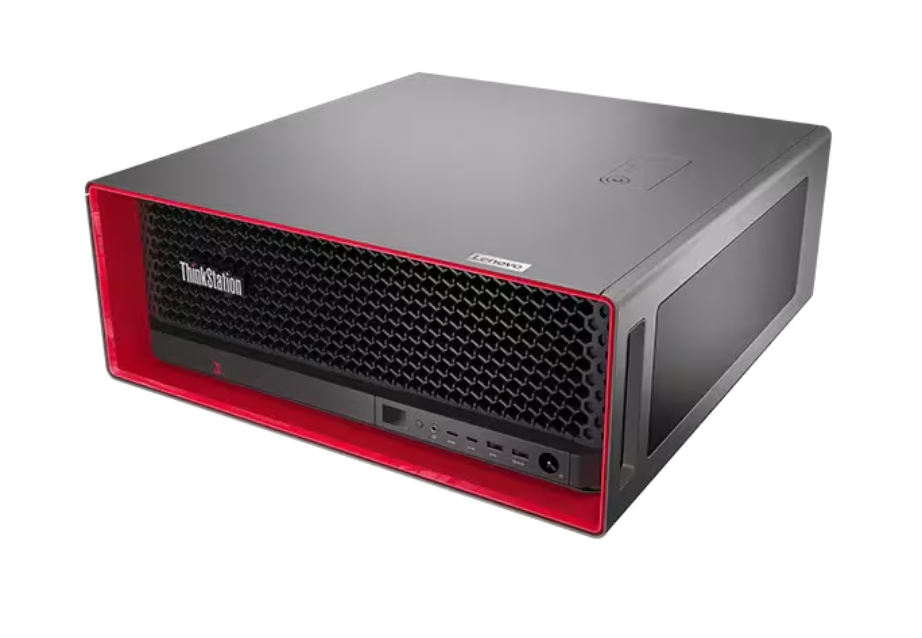

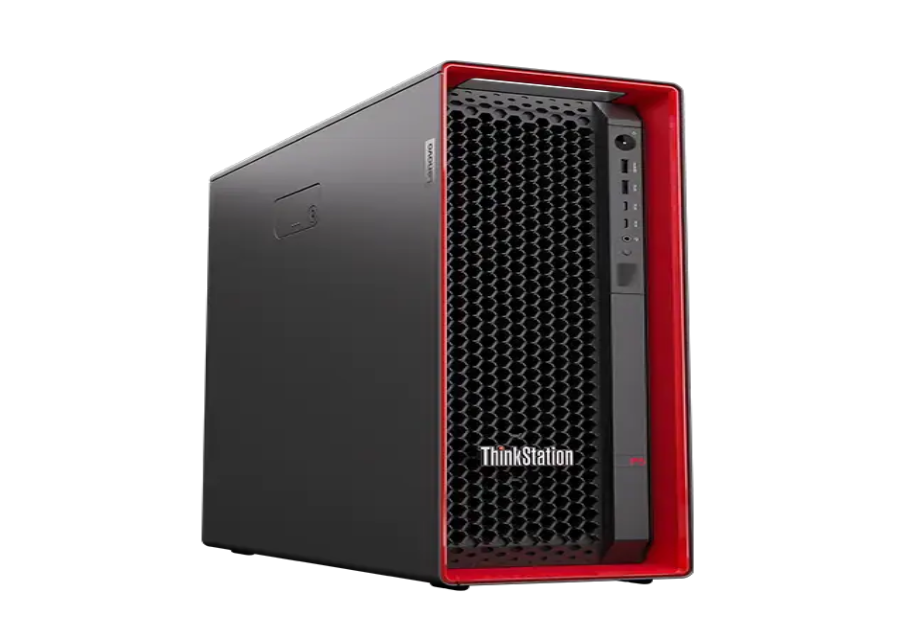

Lenovo ThinkStation P5

share to:

Lenovo ThinkStation P5 is a tower workstation for professional design and high-performance computing needs, focusing on enterprise-class stability and scalability. It is equipped with Intel Xeon W3-2423 processor (6 cores, 12 threads, main frequency 2.1GHz, maximum REfrequency 4.2GHz), supports single-slot configuration, with 16GB DDR5 memory and 256GB SSD+2TB HDD mixed storage, taking into account high-speed data processing and large-capacity file storage requirements. The graphics card is equipped with NVIDIA T1000 professional graphics card (4GB video memory), which supports multi-screen output and industrial graphics rendering, suitable for CAD design, 3D modeling and scientific simulation

Introduction

The next-gen workstation has arrived

Engineered for ultimate productivity and versatility, the Lenovo ThinkStation P5 is the all-around industry workhorse for professionals that demand a scalable, future-proof workstation. Optimized for designers, engineers, and creatives alike, it can support a broad range of compute-intensive tasks with ease, including BIM, complex 3D CAD, VFX, and edge deployments.



Extraordinary performance, power, & speed

With its Aston Martin-inspired chassis design and advanced thermals, the ThinkStation P5 workstation is designed to achieve groundbreaking performance. Key features include an Intel® Xeon® W-Series processor, delivering a breakthrough new compute architecture, and support for up to two optional NVIDIA® RTX™ graphics cards, offering unprecedented rendering and AI performance. The result? Enough punch for any workflow, even in mission-critical environments.



Tried, tested, & true

The ThinkStation P5 workstation has been proven to meet Lenovo’s exacting reliability and durability standards, ensuring that your systems leverage suitable uptime. It also boasts an array of independent software vendor (ISV) certifications, so compute-intensive applications, such as Adobe® and PTC®,  are tuned to run seamlessly on even complex tasks.





A future-proof machine

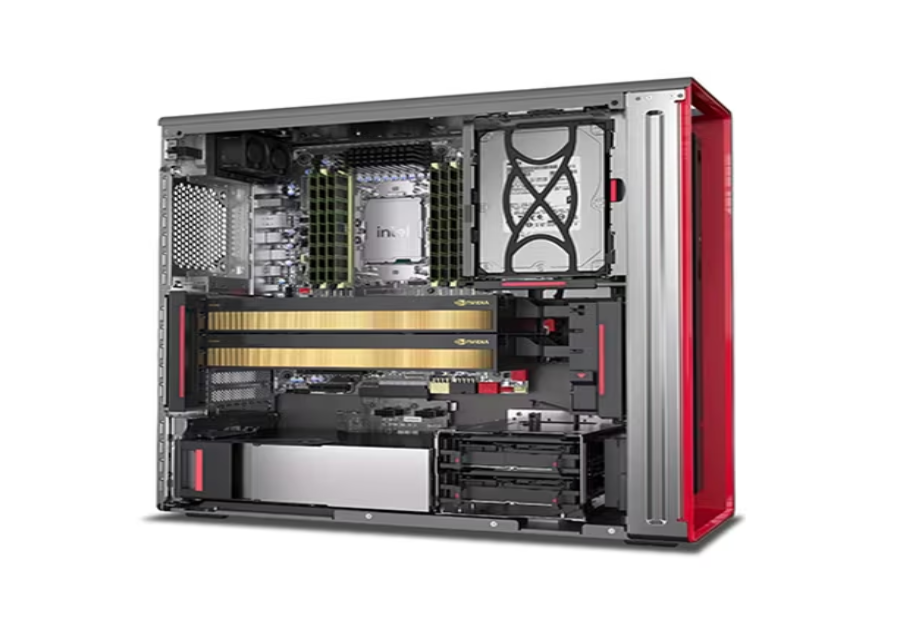

With high-speed DDR5 memory and ultra-fast PCIe storage, the ThinkStation P5 workstation is designed to improve your productivity. It also has the convenience of front drive access, hot-swap storage, tool-less chassis access, and an array of high-performance configurations. As a result, you can enjoy the flexibility of customizing your P5 to tackle your workload needs of today, knowing you can easily upgrade for the ever-increasing datasets of tomorrow.



One less thing to worry about

The ThinkStation P5 comes with ThinkShield—a suite of essential hardware and software security solutions that work together to protect your workstation and data. Trusted Platform Module (TPM) encrypts your data, while ensuring that your machine has not been tampered with. There are also various programs to prevent unauthorized access to the BIOS—and even self-heal the BIOS should it become corrupted or is maliciously attacked.

Specifications

Tech Specs
PERFORMANCE
Processor Up to Intel vPro®with Intel® Xeon®W7-2595XProcessor with vPro™ (26 Cores, 2.8GHz, 75MB Cache, 250W)
Operating System Windows 11 Pro for Workstations
Ubuntu Linux®*
Red Hat®Enterprise Linux®(certified)
Graphics Optional: Choose up to 2 in total:
NVIDIA® RTX™ 4500 Ada (24GB GDDR6)
NVIDIA® RTX™ 4000 Ada (20GB GDDR6)
NVIDIA® RTX™ 2000 Ada (16GB GDDR6)
NVIDIA® RTX™ A6000 (48GB GDDR6)
NVIDIA® RTX™ A5500 (24GB GDDR6)
NVIDIA® RTX™ A4500 (20GB GDDR6)
NVIDIA® RTX™ A4000 (16GB GDDR6)
NVIDIA® RTX™ A2000 (12GB GDDR6)
NVIDIA® RTX™ A1000 (8GB GDDR6)
NVIDIA® T1000 (8GB GDDR6)
NVIDIA® T400 (4GB GDDR6)
Memory Up to 512GB DDR5 RDIMM 4800MHz*
Storage Up to 6 drives in total:
Supports up to 3 maximum, 4TB M.2 NVMe PCIe SSD
Supports up to 3 maximum, 12TB 3.5″ SATA 7200rpm
RAID M.2 = 0 / 1 / 10 / 5*
SATA = 0 / 1 / 5*
Audio Realtek®
CONNECTIVITY
Ports/Slots Front:
Headphone / mic combo
Optional: 2 x USB-A (USB 10Gbps, 1 always-on)
Optional: 2 x USB-C® (USB 10Gbps)

Rear:
2 x USB-A (Hi-Speed USB)
3 x USB-A (USB 10Gbps)*
USB-C® (USB 20Gbps)*
Line in
Line out
Ethernet (RJ45)
Optional: Serial

Wireless Onboard Ethernet
Intel® Ethernet I219-LM
Internal WiFi Antenna

Optional Ethernet
Bitland RTL8168H 1000M PCIE Ethernet Adapter
Intel®I210-T1 Single Port Gigabit Ethernet Adapter
Intel®I350-T2 Dual Port Gigabit Ethernet Adapter
Intel®I350-T4 Quad Port Gigabit Ethernet Adapter
Intel®I550-T2 Ethernet Network Adapter
Intel®X710-DA2 Dual Port 10G Ethernet Network Adapter

Optional WLAN
Intel®WiFi 6E AX211 (2x2ax)* with vPro + Bluetooth®5.2

DESIGN
Dimensions (H x W x D) 440mm x 165mm x 453mm / 17.3″ x 6.5″ x 17.8″
Weight Up to 19kg / 41.9lbs
Color Black with iconic ThinkPad red components
SUSTAINABILITY
Material System
65% post-consumer content (PCC) recycled plastic in Front and Rear Bezel
35% PCC recycled plastic inside the chassis

Packaging
Carton:  90% Recycled and/or FSC certified content*
Cushion:  90% Recycled EPE

Certifications / Registries ENERGY STAR®8.0 *
EPEAT®Gold, where applicable**
RoHS Compliant
TCO 9.0
80 Plus Platinum Power Supply
OTHER INFORMATION
ThinkShield Security Trusted Platform Module (TPM) 2.0, TCG certified
Self-healing BIOS
Supervisor (blocks & prevents access to BIOS setup data)
System Management Password (functions similar to Supervisor but with less authority)
Power-on Password (prompts for password directly after pressing the power button)
Firmware Resiliency
UEFI secure boot support
HDD password protection for HDD data
Windows UEFI firmware update support
Windows Device Guard support
Smart USB Protection
Chassis Intrusion Switch
Kensington Security Slot™
Optional: Access panel lock, padlock loop, BIOS Guard, Boot Guard
Power Supply 750W (92% efficient)
1000W (92% efficient)
ISV Certifications Adobe®
Altair®
ANSYS®
Autodesk®
AVID®
Barco®
Bentley®
Dassault®
McKesson®
Nemetschek®
PTC®
Siemens®
Preloaded Software Lenovo Commercial Vantage (with Windows OS only)
Office 365 trial (with Windows OS only)
What’s in the Box ThinkStation P5 Tower
USB Keyboard
USB Mouse
Quick Start Guide
