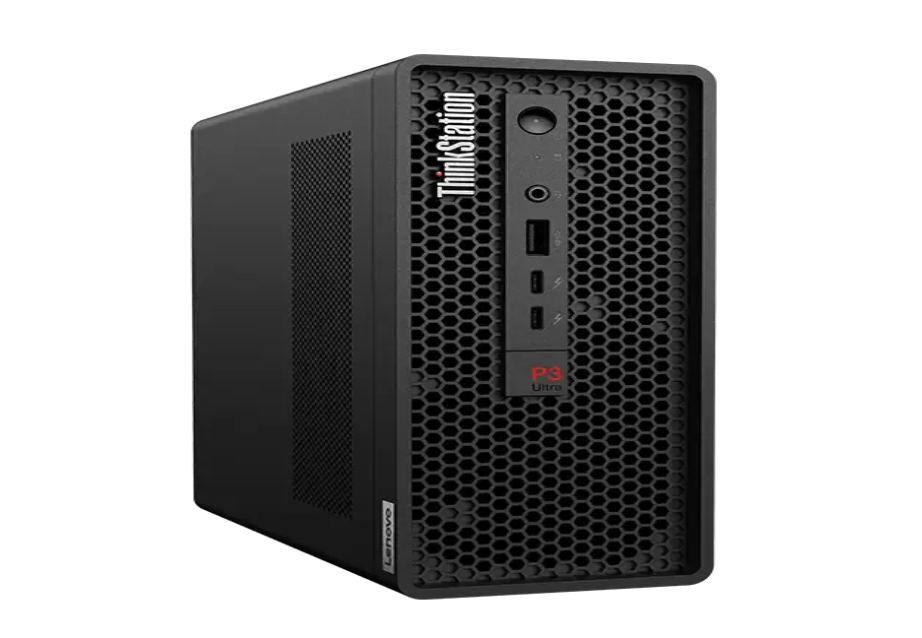

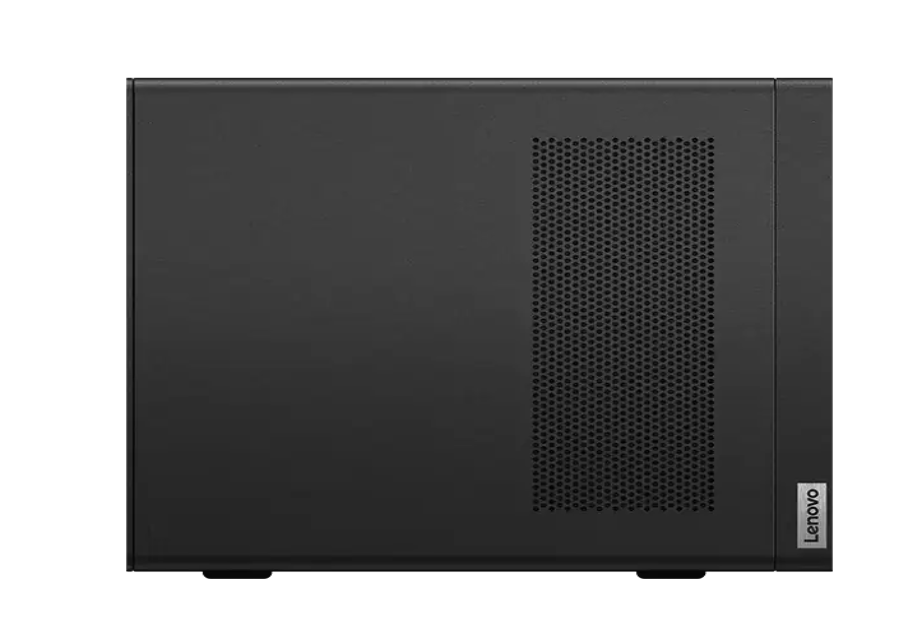

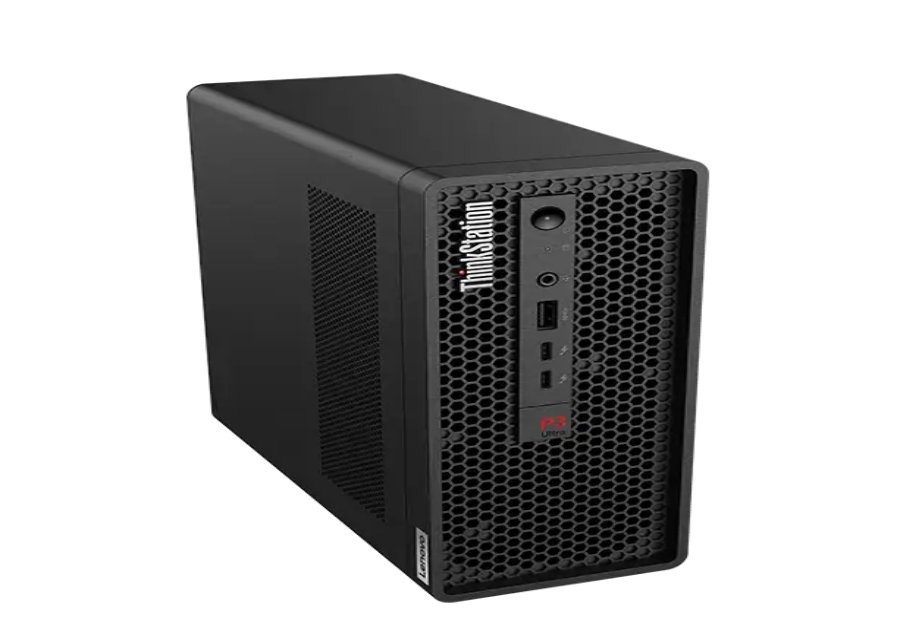

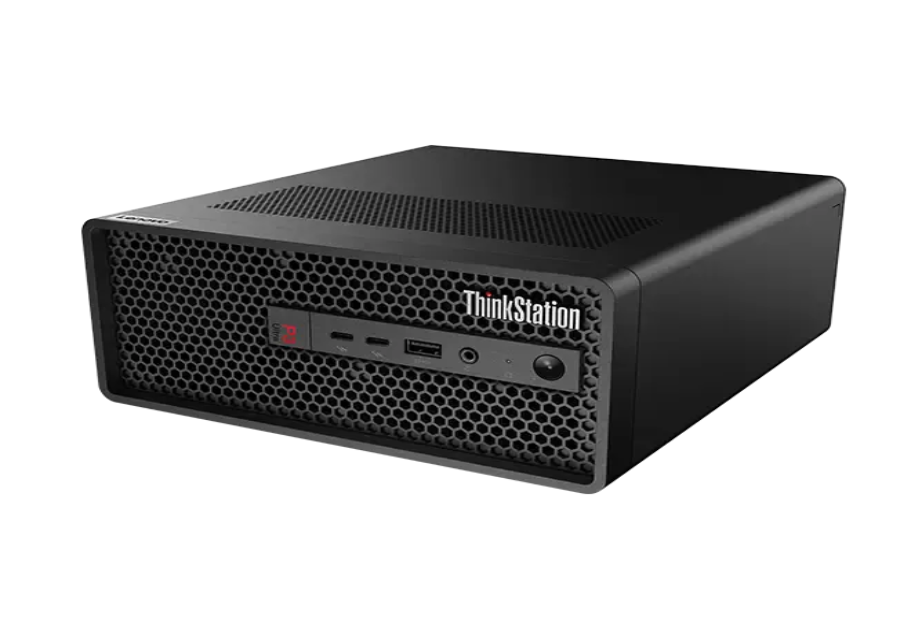

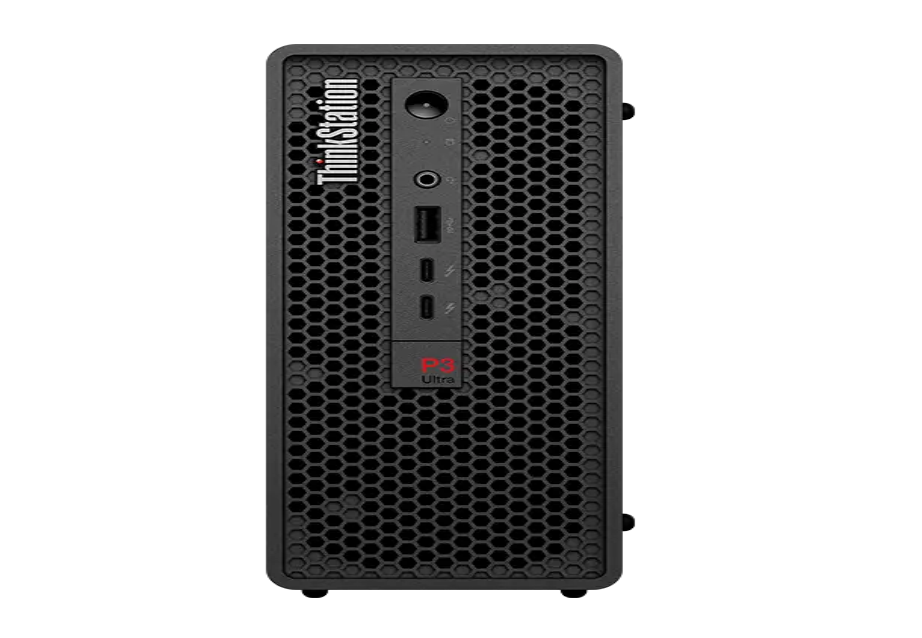

Lenovo ThinkStation P3 Ultra

share to:

The Lenovo ThinkStation P3 Ultra is a mini workstation designed for efficient work and professional use, breaking the limits of traditional workstations with a 3.9-litre ultra-compact body (223×202×86mm, weighing approximately 2.9kg) while delivering desktop-like performance 2 4. It is equipped with a 13th-generation Intel core processor, up to 24-core 32-thread i9-13900 (Rui 5.6GHz), and supports 128GB DDR5 4800MHz memory (4-slot expansion) and dual PCIe 4.0M.2 SSD+ 2.5-inch hard drive (up to 10TB storage). Both high-speed computing and large capacity data storage requirements

Introduction

Superior performance, smaller footprint

The Lenovo ThinkStation P3 Ultra small form factor boasts a revolutionary 3.9L form factor in a space-efficient chassis. Ideal for demanding workflows that require flexible configurations and maximum space savings, it’s designed to go wherever today’s professionals need to be. Powered by Intel vPro® with Intel® Core™ processors and with a choice of optional NVIDIA® discrete graphics, this workstation breaks new ground with an intelligently compact design that doesn’t compromise on functionality.



Configurable for today & tomorrow

No matter how heavy or complex your workflow needs are, the ThinkStation P3 Ultra SFF can be configured to meet them-now and well into the future.  With support for massive memory and storage, plus an array of high-speed ports, including three DisplayPorts and dual ethernet ports, this workstation packs an unimaginable level of power and performance. It also comes with a USB mouse and keyboard.



Makes your workflows flow

The ThinkStation P3 Ultra SFF, with its optimal size and performance, is perfect for any industry, from architecture to healthcare and finance to education. MIL-SPEC-certified, it runs in even the most extreme conditions, from the Arctic to deserts. It also zips through high-performance workflows, such as CAD and Edge/IoT. And with its extensive list of ISV-certified applications, your most complex projects will be executed with ease.



Remote management, made easy

The ThinkStation P3 Ultra SFF supports the pluggable baseboard management controller (BMC)*. A specialized service processor, BMC uses sensors to track the physical condition of hardware such as PCs and network servers. It enables advanced remote monitoring and systems management, including installing BIOS updates and monitoring fan speeds, in this critical time of digital transformation.



All the security you need

The ThinkStation P3 Ultra small form factor comes with ThinkShield-a suite of hardware and software designed to safeguard both your workstation and data. It includes essential security features like Trusted Platform Module (TPM) to encrypt your sensitive data and programs to prevent unauthorized system access. It also has a self-healing BIOS should the BIOS be corrupted or maliciously attacked. For extra peace of mind, this PC supports Windows firmware updates. Monitor and AR/VR headset sold separately.

Specifications

Tech Specs
PERFORMANCE
Processor Up to Intel vPro® Platform featuring Intel® Core™ i9 processors (14th Gen) (up to 24 cores, up to 6.0GHz)
Operating System Windows 11 Pro – Lenovo recommends Windows 11 Pro for business
Windows 11 Home
Ubuntu® Linux®*
Red Hat® Enterprise Linux® (certified)
Graphics Integrated*:
Intel® UHD Graphics 770
Intel UHD Graphics 730

Optional discrete:
NVIDIA® RTX™ 4000 SFF ADA (20GB GDDR6)
NVIDIA® RTX™ 2000 ADA (16GB GDDR6)
NVIDIA® RTX™ A2000 (12GB GDDR6)
NVIDIA® RTX™ A1000 (8GB GDDR6)
Up to 2 x NVIDIA® RTX™ A400 mobile (4GB GDDR6)
Up to 2 x NVIDIA® T1000 (8GB GDDR6)
NVIDIA® T400 (4GB GDDR6)

Memory Up to 128GB DDR5 up to 4000MHz* ECC or non-ECC
Storage Up to 3 drives total:
Supports up to 2 maximum, 4TB M.2 NVMe PCIe SSD
Supports up to 1 maximum, 1TB 2.5″ SATA 7200rpm
RAID M.2 = 0/1
Audio Realtek®
CONNECTIVITY
Ports/Slots Front:
USB-A (USB 10Gbps)
2 x USB-C® (Thunderbolt™ 4, USB 40Gbps, 1 always on / fast charge)
Headphone / mic combo

Rear:
4 x USB-A (USB 10Gbps, 1 for keyboard power-on control)
3 x DisplayPort 1.2
Ethernet (RJ45, 2.5Gbps)
Ethernet (RJ45, 1Gbps)
Optional: Expansion card/ports*

Wireless Optional: Intel® WiFi 6E AX211 (2x2ax)* with vPro & Bluetooth® 5.3(may be limited by OS)
DESIGN
Dimensions (H x W x D) 87mm x 202mm x 223mm / 3.4″ x 7.9″ x 8.7″
Weight Starting at 1.8kg / 3.96lbs
Color Black
SUSTAINABILITY
Material 85% PCC recycled plastic front, rear bezel
35% PCC recycled plastic inside chassis
Carton: 90% recycled and/or Forest Service Council® (FSC) certified content*
Cushion: 90% recycled expanded polyethylene (EPE)
Certifications / Registries ENERGY STAR® 8.0
EPEAT® Gold, where applicable*
Forest Service Council® (FSC) packaging
RoHS compliant
TCO 9.0
OTHER INFORMATION
ThinkShield Security Trusted Platform Module (TPM) 2.0
Smart USB Protection
Self-healing BIOS
Kensington Security Slot™
Power Supply 170W Slim (90% efficient)
230W (90% efficient)
300W (90% efficient)
ISV Certifications AVID®
Altair®
ANSYS®
AutoCAD®
Barco®
Bentley®
Dassault®
McKesson®
Nemetschek®
PTC®
Siemens®
Preloaded Software Lenovo Commercial Vantage (with Windows OS only)
Office 365 trial (with Windows OS only)
What’s in the Box ThinkStation P3 Ultra SFF
170W, 230W, or 300W adapter (depending upon configuration)
USB Keyboard
USB Mouse
Quick Start Guide
