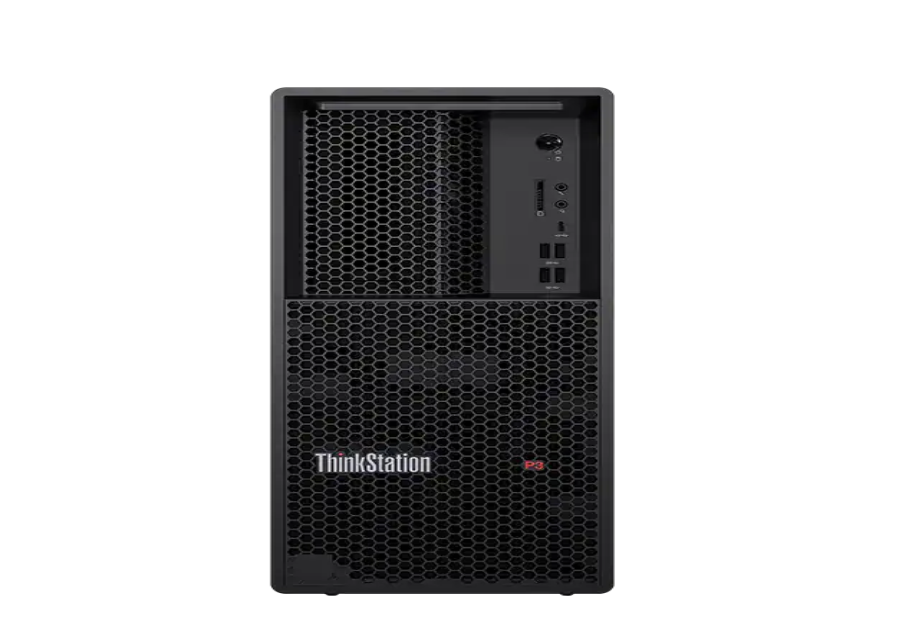

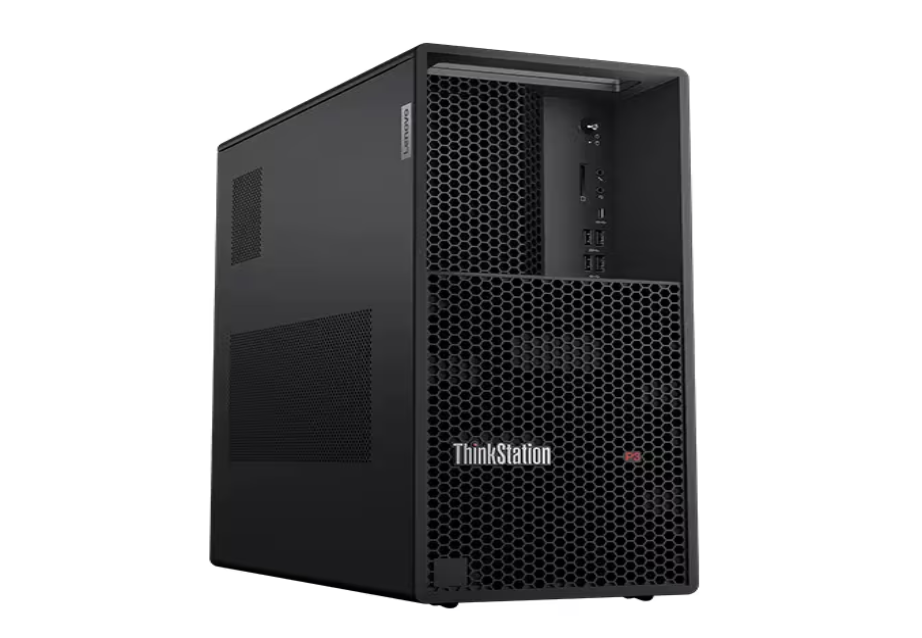

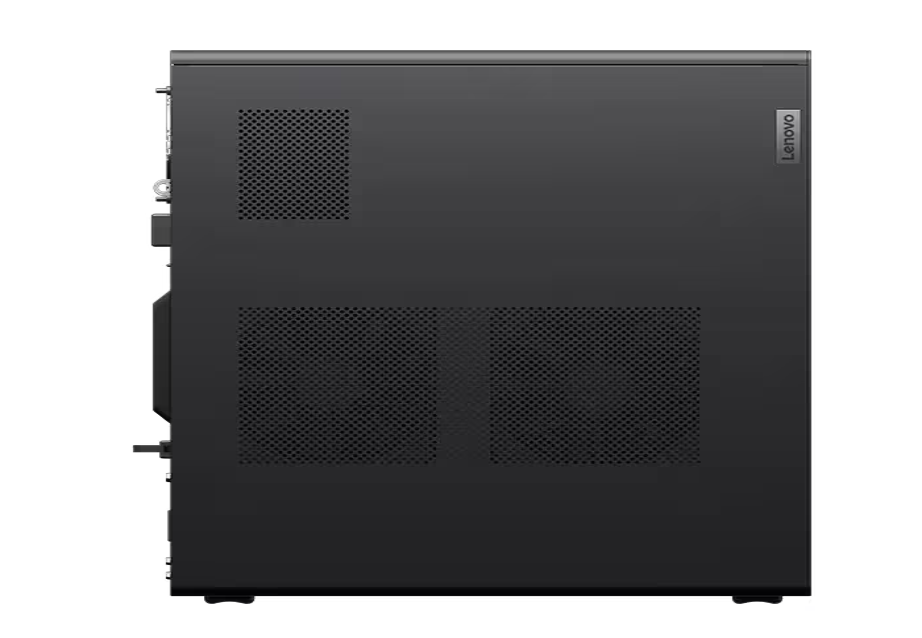

Lenovo ThinkStation P3 Tower

share to:

Lenovo ThinkStation P3 Tower is Lenovo’s tower workstation designed for professional design and efficient computing, powered by the 14th generation Intel Core i7-14700 processor (2.1GHz, 20 threads). Equipped with 32GB DDR5 4800MHz memory and hybrid storage solution (1TB SSD+4TB HDD), supporting high-speed data processing and large-capacity file storage requirements 2. In terms of graphics, NVIDIA GeForce RTX 3060 independent graphics card (12GB video memory) can smoothly run 3D modeling, rendering and complex graphics tasks

Introduction

Workstation might, desktop price

Designed by engineers for engineers, the Lenovo ThinkStation P3 Tower offers all the workhorse capabilities of a workstation for the price of a desktop. Built for tasks that require superior power and performance, it’s equipped with the latest 13th Gen Intel® Core™ processors, now up to 24 cores, and supports professional NVIDIA® discrete graphics.



Delivering power & performance

The ThinkStation P3 Tower’s chassis has an advanced thermal design to promote extra power and performance, without overheating. It also comes with a choice of operating systems, including Windows 11 Pro and Linux®. In short, the P3 gives you the compute power to execute your visions, time and time again.



Configure it any which way

With three onboard DisplayPorts, plus the ability to configure up to eight more, the ThinkStation P3 Tower can support up to 12 independent displays. It also comes with a choice of operating systems, including Windows 11 Pro and Red Hat® Enterprise Linux®. And with heaps of speedy memory and SSD storage, plus five open PCIe slots, this workstation can be configured to tackle your most exacting workflows. It also comes with a USB mouse and keyboard.



Mission-critical performance, made easy

At the heart of every Lenovo ThinkStation is reliability. Proven to run in extreme conditions, the ThinkStation P3 Tower also boasts an array of independent software vendor (ISV) certifications. It’s the perfect workstation for designers, engineers, and students looking for versatility, flexibility, and breakthrough performance to breeze through heavy workloads.



Security you can count on

The ThinkStation P3 Tower is protected with ThinkShield, a suite of hardware and software that work together to safeguard your workstation and data. This includes the discrete Trusted Platform Module (TPM) 2.0 to encrypt sensitive data, as well as various programs to prevent unauthorized access to the BIOS, plus self-healing software if the BIOS is corrupted or maliciously attacked. For extra peace of mind, it also supports Windows firmware updates.

Specifications

Tech Specs
PERFORMANCE
Processor Up to 14th Gen Intel® Core™ i9 processor with Intel vPro® (up to 24 cores, up to 6.0GHz)
Operating System Windows 11 Pro for Workstations – Lenovo recommends Windows 11 Pro for business
Windows 11 Home
Ubuntu® Linux®*
Red Hat® Enterprise Linux®**
Graphics NVIDIA® RTX™ 5000 Ada (32GB GDDR6)
NVIDIA® RTX™ 4500 Ada (24GB GDDR6)
NVIDIA® RTX™ 4000 Ada (20GB GDDR6)
NVIDIA® RTX™ A5500 (24GB GDDR6)
NVIDIA® RTX™ A5000 (24GB GDDR6)
NVIDIA® RTX™ A4500 (20GB GDDR6)
NVIDIA® RTX™ A4000 (16GB GDDR6)
NVIDIA® RTX™ A2000 (12GB GDDR6)
NVIDIA® T1000 (8GB GDDR6)
NVIDIA® T400 (4GB GDDR6)
Integrated Intel® UHD Graphics 770*
Integrated Intel® UHD Graphics 730*
Memory Up to 128 GB DDR5 5600MHz ECC and non-ECC*
Storage Up to 6 total drives:
Max M.2 = x3 (10TB)
Max 2.5″ = x3 (3TB) or 3.5″ = x3 (18TB)

Up to 5 total drives:
Max M.2 = x1 (2TB)
Max 2.5″ = x4 (4TB) or 3.5″ = x4 (24TB)

RAID M.2 = 0 / 1
SATA = 0 / 1 / 10 / 5
Audio Realtek®
CONNECTIVITY
Ports / Slots Front:
2 x USB-A (5Gbps)
2 x USB-A (10Gbps)
USB-C® (10Gbps)
Headphone / mic combo
Mic

Rear:
HDMI 2.1 TMDS
2 x DisplayPort™ 1.4
4 x USB-A (5Gbps) (One supports Smart Power On)
Ethernet (RJ45, Gigabit)
Line out

Optional Rear:
Serial
2 x PS/2
Expansion card

Networking Onboard Ethernet:
Intel® Ethernet I219-LM

Optional Ethernet:
Intel® I210-T1 Single Port Gigabit Ethernet Adapter
Intel® I350-T2 Dual Port Gigabit Ethernet Adapter
Broadcom BCM5719 Quad Port Gigabit Ethernet Adapter
Broadcom BCM5720 Dual Port Gigabit Ethernet Adapter
Realtek® RTL8168H Single Port Gigabit Ethernet Adapter

Optional WLAN:
Intel® WiFi 6E AX211 (2x2ax)* with vPro + Bluetooth® 5.3 (may run lower due to OS limitations)

DESIGN
Dimensions (H x W x D) 415mm x 180mm x 370mm / 16.3″ x 7.1″ x 14.6″
Weight Starting at 13.61kg / 30.0lbs
Color Black
SUSTAINABILITY
Material System:
95% post-consumer content (PCC) recycled plastic in front bezel

Packaging:
Carton: 90% recycled and/or FSC certified content*
Cushion: 90% recycled EPE

Certifications / Registries ENERGY STAR® 8.0
EPEAT® Gold, where applicable**
TCO 9.0
RoHS Compliant
OTHER INFORMATION
ThinkShield Security Discrete Trusted Platform Module (dTPM) 2.0, TCG certified
Optional: Chassis intrusion switch
BIOS administrator password
BIOS Power-on password
UEFI Secure Boot
Self-healing BIOS
Optional: Cable lock
Optional: E-lock
Kensington Security Slot™
Padlock Loop
Power Supply 500W (92% efficient)
750W (92% efficient)
1100W (92% efficient)
ISV Certifications Altair®
ANSYS®
ArcGIS®
AutoCAD®
AVID®
Barco®
Bentley®
Dassault®
McKesson®
Nemetschek®
PTC®
Siemens®
Schlumberger®
Preloaded Software Lenovo Commercial Vantage (with Windows OS only)
Office 365 trial (with Windows OS only)
What’s in the Box ThinkStation P3 Tower
USB Keyboard
USB Mouse
Quick Start Guide
