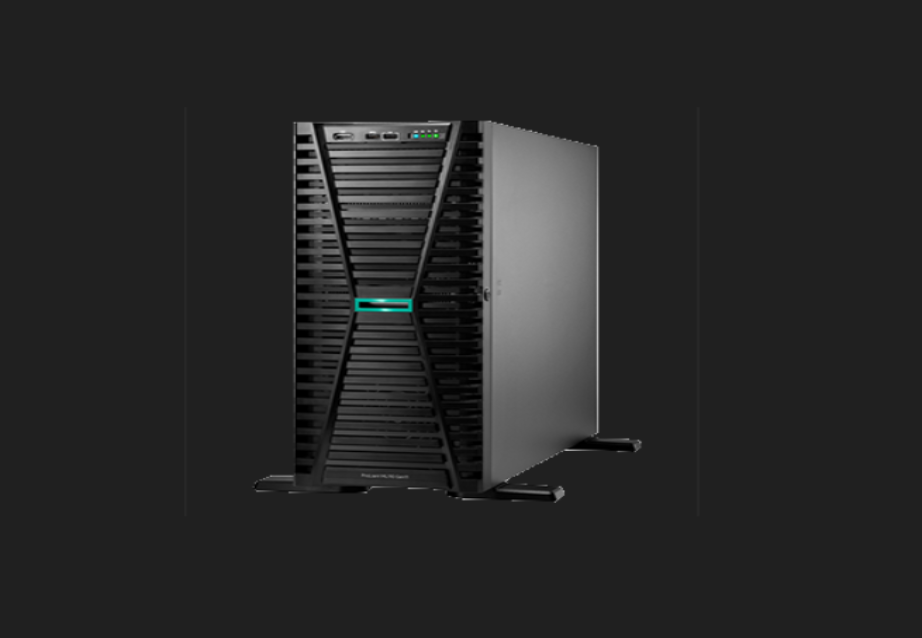

HPE ProLiant ML110 Gen11

share to:

The HPE ProLiant ML110 Gen11 server is an enhanced single-processor tower server with excellent performance, strong scalability, security, reliability and affordable price. It supports the 4th/5th generation Intel® Xeon® Scalable Processor and is equipped with HPE DDR5 memory with a maximum capacity of up to 1TB. This server can be easily converted to a 5.5U rack form. The HPE ProLiant ML110 Gen11 server also provides optional redundant fans and power supplies to meet the needs of automatic fault switching, making it an ideal choice for small and medium-sized enterprises, remote offices and branch offices.

Introduction

Right-sized, economical and reliable to meet the needs of growing small and medium-sized businesses

The HPE ProLiant ML110 Gen11 Server is compact, less than 19 inches deep, quiet and affordable, delivering the performance you need to meet the computing needs of growing small and medium businesses.

* Advanced computing performance. The HPE ProLiant ML110 Gen11 server uses the 4th/5th generation Intel® Xeon® Scalable processor, supporting up to 32 cores, which can handle more tasks simultaneously.

* Efficient memory bandwidth and performance, supporting 16 DIMM slots and up to 1 TB DDR5 memory capacity, with enhanced memory bandwidth and performance to improve the responsiveness of customer business and workloads.

* Faster data transfer rates and network speeds. Provides up to 4 x16 PCIe Gen5 and 1 x16 OCP slots via PCIe Gen5 serial expansion bus to increase I/O throughput and reduce latency.

* Up to two optional graphics accelerators (GPUs) to significantly improve the performance of graphics and virtual desktop (VDI) applications in areas such as financial services, education, scientific research and medical imaging.



Trustworthy safety design

HPE Silicon Root of Trust is an industry-unique security technology that protects millions of lines of firmware code from malware and ransomware through the server’s unique digital fingerprint.

In addition, the latest HPE Integrated Lights-Out (iLO) – iLO6 is used to verify and authenticate device components. The latest version supports new features for authentication using the Security Protocol and Data Model (SPDM), which is used to securely verify and monitor network cards and storage controllers using an open standards-based approach, extending the scope of protection to the partner ecosystem for more comprehensive security protection and management.

Specifications

CPU Supports 1 4th/5th Generation Intel® Xeon® Scalable Processor, up to 32 cores
Memory Up to 16 DDR5 memory slots, supporting a maximum rate of 4800MT/s and a maximum memory capacity of 1TB
Storage Controller Intel VROC SATA
HPE OCP or PCIe array card
Storage 8 non-hot-swap SAS/SATA 3.5-inch hard drives
8 hot-swappable SAS/SATA 3.5-inch hard drives
16 hot-swappable SAS/SATA 2.5-inch hard drives
Supports hot-swappable, highly available RAID M.2 boot disk
Network Embedded 2x1Gb onboard network card
Expansion slots Comes standard with 4 PCIe 5.0 and 1 OCP3.0 slots
GPU Supports 1 double-width or 2 single-width GPUs
I/O 1 front DP display port
1 rear optional serial port and VGA port
1 rear 1Gb HPE iLO dedicated remote management network port
1 front standard iLO service port
4 USB 3.2 Gen1 ports (1 front, 2 rear, 1 internal), 1 USB 2.0 (internal)
Fan 2 standard fans
Manage iLO Standard Edition is standard, iLO Advanced Edition and OneView Advanced Edition are optional
Support HPE iLO6, RESTful and other interface tools
Power and Cooling Support 500W/800W/1000W/1600W power supply, support 1+1 hot-swap redundancy
Operating temperature 10℃ – 35℃
Chassis size 462mm (height) x195mm (width) x 587mm (depth)
