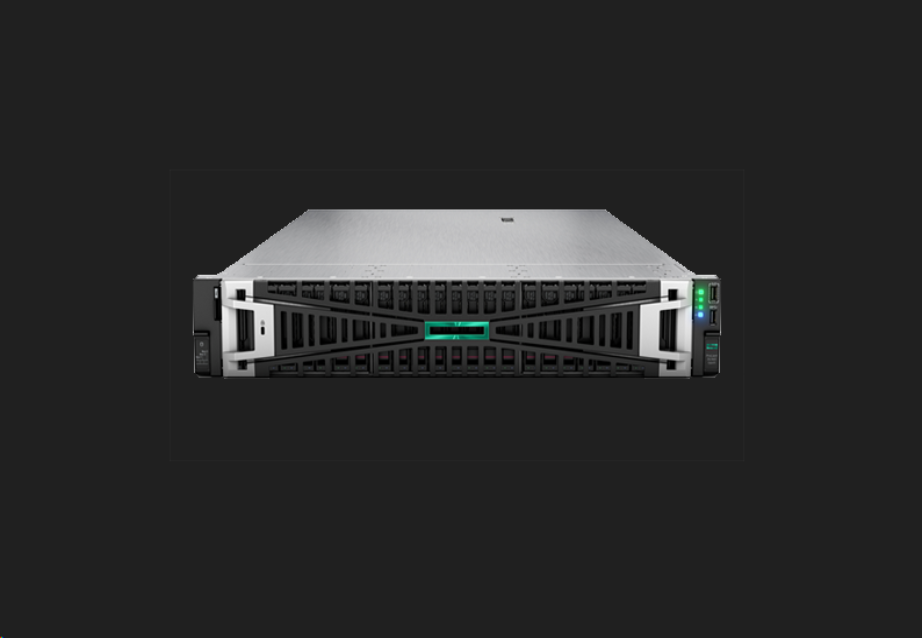

HPE ProLiant DL560 Gen11

share to:

HPE ProLiant DL560 Gen11 server is a high-performance, high-scalability, high-reliability, high-density 2U4-way server. This server is equipped with the fourth-generation Intel® Xeon® Scalable Processor, a single CPU supports up to 60 cores, the whole machine supports up to 16TB DDR5 memory, 6 PCIe 5.0 slots and 2 OCP slots, with excellent computing performance, faster data transmission rate and network speed, it is an excellent choice for critical business, virtualization, server consolidation, business processing, memory database and data analysis workloads.



Introduction

Intuitive cloud experience: simple, self-service and automated

HPE ProLiant DL560 Gen11 is designed for hybrid cloud environments. The self-service console enables global visualization of operations, supports timely understanding of system resource usage, and achieves reasonable resource allocation, truly achieving proactive operations. The automated task function enables efficient business deployment, reduces the amount and time of operation and maintenance tasks, and achieves worry-free operation and maintenance.

Secure and reliable design: comprehensive, basic and solid protection

Trusted silicon root technology and silicon-level zero-trust architecture prevent critical server firmware from being threatened or tampered with by malware.

iLO6 extends the scope of protection to the partner ecosystem, enabling more comprehensive security protection and management.

The 4th generation Intel® Xeon® Scalable processors and hardware- and software-assisted security features provide comprehensive protection for server hardware foundation and data in memory.

Automatic recovery capabilities, including firmware recovery, facilitate recovery of operating systems, applications, and data, helping servers get back online and providing services in the fastest way possible.



Optimizing performance for your workload: Acceleration, openness, and efficiency

The HPE ProLiant DL560 Gen11 is equipped with four 4th Generation Intel® Xeon® Scalable processors and a maximum memory capacity of 16 TB, providing super computing performance on a single machine. Up to 6 x16 PCIe Gen5 slots and 2 OCP slots can significantly increase I/O throughput and reduce latency. The server performance real-time feedback function can provide different BIOS setting options for changing business needs.

HPE’s original Closed-Loop Direct Liquid Cooling technology can effectively improve the heat dissipation efficiency of equipment and enable the deployment of liquid cooling equipment without data center reconstruction.

Specifications

CPU 4th Generation Intel® Xeon® Scalable Processors, up to 60 cores per processor
Memory Up to 64 DDR5 memory slots, supporting a maximum rate of 4800MT/s and a maximum memory capacity of 16TB
Storage Controller 8-channel embedded 6Gb AHCI/RAID SATA
Intel VROC with NVMe support
HPE Smart Array Storage Controller or Tri-Mode Array Card based on standard PCIe slot
Optional RAID1-protected M.2 OS boot device with selectable internal/external access
Storage Support 8/16/24 SFF HDD/SSD; SAS/SATA/NVME
Support 24 EDSFF E3.S
Network Support 1GB/10GB/25GB/100GB/200GB network cards
GPU 6 single width or 2 double width
Expansion slots 6 PCIe 5.0 slots and 2 OCP3.0 slots
I/O 7 USB ports (4 3.0 and 3 2.0), 1 serial port, 2 video ports
1 iLO management port
Manage iLO Standard Edition is standard, iLO Advanced Edition and OneView Advanced Edition are optional
Support HPE iLO 6, RESTful and other interface tools
Power supply Up to 4 HPE Flexible Slot power supplies, supporting 800W/1000W/1600W/1800-2200W
Heat dissipation Supports liquid cooling solution, supports up to 6 hot-swappable redundant fans
Operating temperature 5℃ – 45℃
Chassis size 87.5mm (height) × 433mm (width) × 828mm (depth)
