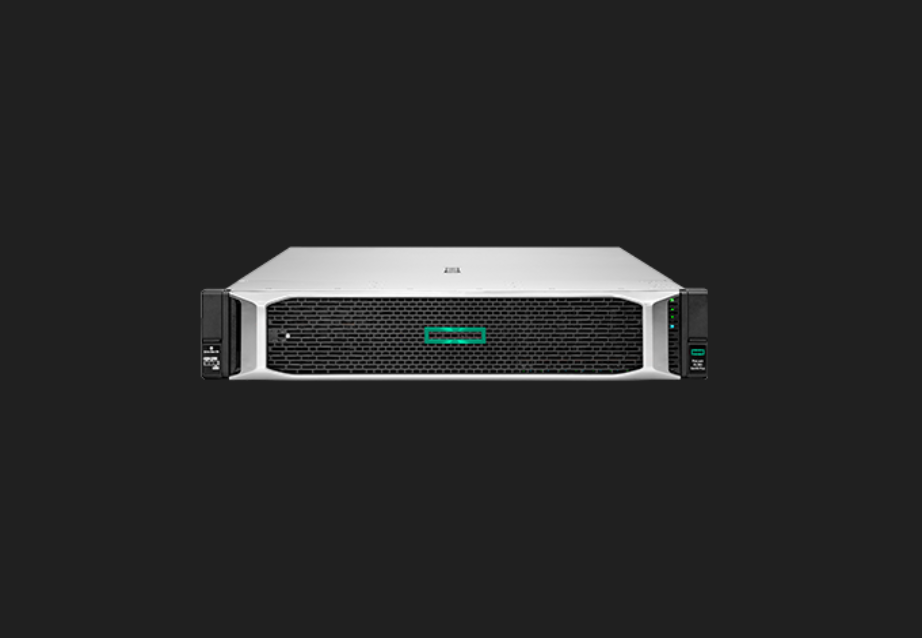

HPE ProLiant DL380 Gen10 Plus

share to:

The HPE ProLiant DL380 Gen10 Plus server supports up to two third-generation Intel® Xeon® Scalable processors, with up to 40 cores per processor, and up to 6TB of HPE DDR4 3200 MT/s memory. This server supports 12Gb/s SAS interface, up to 34 NVMe hard drives, and a wide range of computing options. With PCIe 4.0 capabilities, it can greatly improve data transfer rates and network speeds. Intel® Optane® persistent memory PMem 200 also provides better performance advantages for database analytical loads, suitable for any workload from basic applications to critical business, and easy to deploy.

Introduction

Purpose-Built for Demanding Workloads

The HPE ProLiant DL380 Gen10 Plus server has powerful core intelligence technology built in, which can adapt to a variety of workloads through deep insights, improve performance and deployment efficiency, promote IT transformation, and quickly deliver outstanding results.

It provides real-time operational feedback on server performance and gives fine-tuning recommendations on BIOS settings for custom adjustments to meet changing business needs.



Comprehensive overall security

The overall security of the HPE ProLiant DL380 Gen10 Plus server has been further enhanced, providing comprehensive protection from manufacturing supply chain to secure operations at the end of the lifecycle.

HPE ProLiant security begins with lossless server manufacturing, during which the integrity of each component (hardware and firmware) is audited, ensuring that the server lifecycle begins with a secure supply chain.

HPE ProLiant servers can quickly detect security threats and even prevent at-risk servers from booting, while verifying containment of malicious code to prevent other servers from being affected.



Intelligent management automation

The HPE ProLiant DL380 Gen10 Plus server simplifies and automates management tasks, laying the foundation for an automated, standards-based hybrid cloud platform. Embedded in HPE servers, HPE Integrated Lights-Out (iLO) is HPE’s proprietary core intelligence technology that monitors server status, provides reporting, ongoing management, service alerts, and local or remote management methods to quickly identify and resolve issues. Automation and software-defined control reduce the time spent on configuration, maintenance, and deployment. HPE InfoSight for Servers continuously analyzes server infrastructure and leverages real-world examples from hundreds of thousands of servers to predict and prevent problems before they adversely affect business operations.

Specifications

CPU Supports 2 third-generation Intel® Xeon® Scalable processors, each with up to 40 cores and a maximum power of 270W
Memory Supports up to 32 DDR4 memory slots, with a maximum speed of 3200MT/s, supports RDIMM or LRDIMM, and a maximum capacity of 6TB for a single processor
Persistent Memory Supports up to 16 Intel® Optane® persistent memory PMem 200 series (maximum capacity of a single processor is 4TB)
Storage Controller Standard onboard array controller, supporting SATA RAID 0/1/10/5
Optional HBA cards and Smart Array series array cards based on dedicated array card slots
Intel VROC and HPE Smart Storage SR100i with NVMe
Optional Tri-mode (NVMe/SAS/SATA) HPE Smart Array Controller
Optional hardware RAID1 operating system boot device with built-in M.2 solid-state drive (NS204i-p)
Storage Supports up to 38 2.5-inch SATA/SAS hard disks (24 front + 8 internal expansion + 6 rear expansion)
Supports up to 20 3.5-inch SATA/SAS hard disks (12 front + 4 internal expansion + 4 rear expansion)
Supports up to 34 NVMe SSDs
Supports NVMe U.2, U.3, AIC, and M.2 SSDs
Network Optional network adapter based on standard PCIe slot
Optional OCP 3.0 network card
Expansion slots Standard 3 PCIe 4.0 available slots, supports up to 8 PCIe 4.0 available slots
I/O Optional front display port, optional rear VGA and serial port
5 USB 3.0 (1 front, 2 rear, 2 internal), 2 optional USB 2.0; 2 optional Micro SD cards
GPU Support Up to 8 single-width GPU cards or 3 double-width GPU cards
Optical Drive Support external optical drive; some models support built-in optical drive
Manage iLO Standard Edition is standard, iLO Advanced Edition and OneView Advanced Edition are optional
Support HPE iLO 5, SUM, RESTful interface tools
Support mobile application software APP
Power and Cooling Optional up to 1600W 1+1 hot-swappable redundant power supply, supporting up to 96% titanium; supports 6 hot-swappable redundant fans
Operating temperature 5℃ – 45℃
Chassis size 87.3mm(H) x 445.4mm(W) x 711.2mm(D) (2.5-inch hard disk model)
87.3mm(H) x 445.4mm(W) x 743.9mm(D) (3.5-inch hard disk model)
