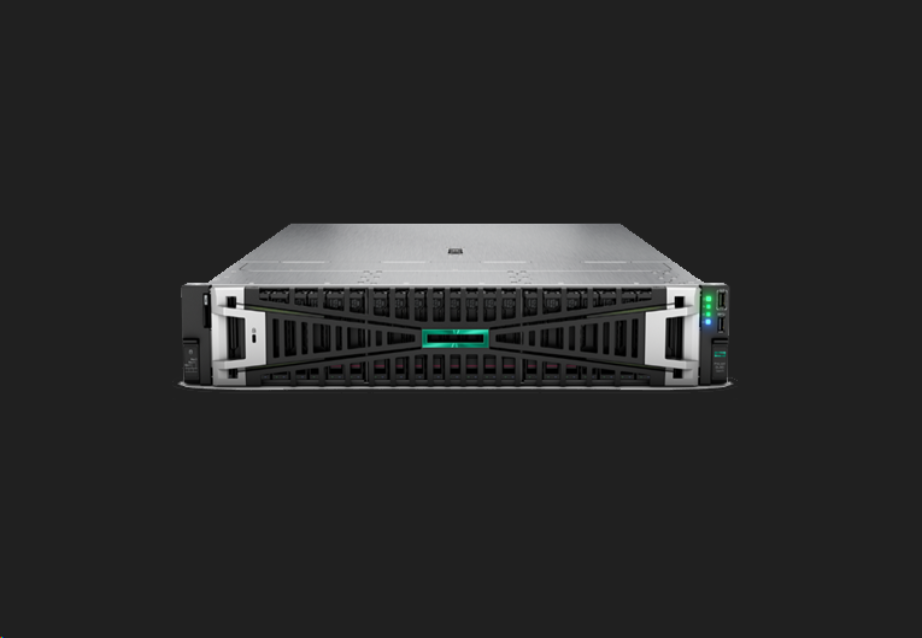

The HPE ProLiant DL380 Gen10 is the 10th generation 2U rach-mounted server from HP Enterprise (HPE), designed for high-performance computing, virtualization, database and hybrid cloud workloads.
share to:
The HPE ProLiant DL380 Gen10 is the 10th generation 2U rach-mounted server from HP Enterprise (HPE), designed for high-performance computing, virtualization, database and hybrid cloud workloads.
Supported platform: Intel Xeon Scalable processors (1st to 2nd generation, such as Skylake/Cascade Lake).
Number of cores: Single or dual configurations, up to 28 cores /CPU (e.g. Xeon Platinum 8280).
Computing power optimization: High-performance cpus with TDP up to 205W are suitable for intensive computing tasks.
Capacity: Supports a maximum of 3TB DDR4 memory (24 DIMM slots, each 128GB LRDIMM).
Speed: Support 2666/2933 MHz, providing high bandwidth to accelerate data-intensive applications.
Drive support: Supports up to 32 SFF (2.5-inch) hard drives or 12 LFF (3.5-inch) hard drives. Supports SATA/SAS HDDS, SSDS, and NVMe SSDS (through a dedicated NVMe backplane).
Flexible configuration: SSDS and HDDS can be deployed to meet performance and capacity requirements.
PCIe slots: A maximum of eight PCIe 3.0 slots (supporting Gpus, FPgas, and 25Gb nics).
Network interface: FlexibleLOM module is optional, supporting 10/25GbE, InfiniBand and other high-speed networks.
| CPU | Supports up to 2 Intel® Xeon® 2nd Generation Scalable Processors, 4/8/12/16/18/20/22/24/26/28 cores, and supports a maximum power of 205W |
| Memory | Supports up to 24 DDR4 memory slots, with a maximum speed of 2933MT/s, supports RDIMM or LRDIMM, and a maximum capacity of 3.0TB. |
| Persistent Memory | Supports 12 NVDIMM persistent memory with a maximum capacity of 192GB/HPE DC persistent memory supports up to 6TB (2H19) |
| Storage Controller | Standard onboard array controller, supports SATA RAID 0/1/10/5 Optional HBA card based on array card dedicated slot, supports SATA/SAS RAID 0/1/10/5 Optional Smart Array series array card based on array card dedicated slot, supports SATA/SAS RAID0/1/10/5/6/50/60/1 ADM Optional HBA card and Smart Array array card based on standard PCIe slot supports up to 4GB FBWC |
| Storage | 24+6 SFF/12LFF + 4+3 SFF + up to 2 SFF HDD/SSD hard drives, 20 NVMe PCIe SSDs and + m.2 available expansion |
| Network | Onboard 4-port Gigabit network adapter/network card Optional NC model does not include onboard network controller 6 Optional FlexibleLOM network adapter Optional network adapter based on standard PCIe slot |
| Expansion slots | 3 PCIe 3.0 slots available as standard, up to 8 PCIe slots available |
| I/O | Optional front VGA and serial port, standard rear VGA; 5 USB 3.0 (1 front, 2 rear, 2 internal); Optional 2 MicroSD |
| GPU Support | Up to (7) single-wide/(3) double-wide |
| Optical Drive | Supports external optical drive; 4LFF and 8SFF models support internal optical drive |
| Manage | iLO Standard Edition is standard, iLO Advanced Edition and OneView Advanced Edition are optional |
| Power and Cooling | Optional 500W/800W/1600W 1+1 hot-swappable redundant power supply, up to 96% titanium, hot-swappable redundant fan |
| Operating temperature | 5℃～45℃，ASHRAE A3 & A4 |
| Chassis size | 44.54 x 67.94 x 8.73 cm (W x D x H, SFF model) 44.54 x 73.02 x 8.73 cm (W x D x H, LFF model) |
