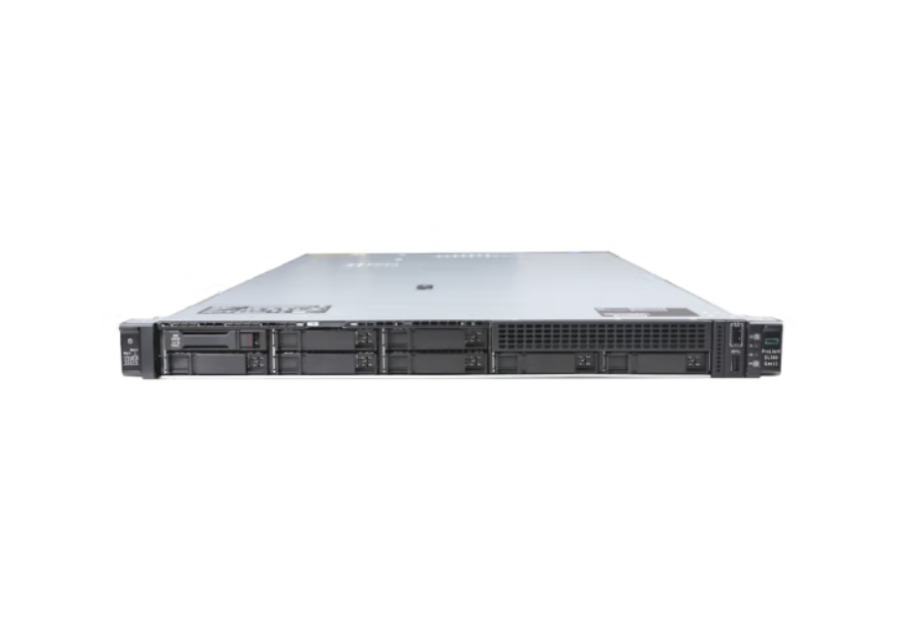

The HPE ProLiant DL360 Gen11 server is an optimized 1U two-socket rack server based on Intel’s new generation Eagle Stream platform, which provides excellent computing performance, enhanced data transfer rates, and memory depth with two-socket computing capabilities. Suitable for general virtualization workloads that require increased computing density, built-in security, and flexibility, the HPE ProLiant DL360 Gen11 server is an ideal choice for application scenarios such as EDA, CAD, and VDI.
Intuitive operation and maintenance experience
Designed for your hybrid environment, the HPE ProLiant DL360 Gen11 server simplifies the way enterprises manage computing systems and provides a simple and flexible operation and maintenance experience. Through a self-service console, with global visualization and insights, transform your business operations and drive your team from reactive to proactive. Automate tasks to improve deployment efficiency and enhance instant scalability
Purpose-Built for Demanding Workloads
The HPE ProLiant DL360 Gen11 server is ideal for computing and data storage workloads that require density optimization and ultra-high core counts. Built-in powerful core intelligence technology can provide real-time feedback on server performance and give fine-tuning suggestions on BIOS settings. Through deep insights, it can adapt to a variety of workloads, improve performance and deployment efficiency, thereby promoting IT transformation and quickly delivering outstanding results.
Comprehensive overall security
The HPE ProLiant DL360 Gen11 server supports trusted silicon root, which can effectively manage functions such as secure boot, memory encryption and secure virtualization, and supports firmware consistency detection function, which can inhibit the spread of malicious code and protect the normal operation of the server. It can quickly detect security threats and has the ability to automatically recover from security incidents. It has built-in HPE’s proprietary core intelligent technology, which helps remote management and quickly identify and solve problems.
| CPU | Supports 2*4th-generation Sapphire Rapids or 5th-generation Emerald Rapids Intel® Xeon® Scalable processors, up to 64 cores per processor, and a maximum power of 385W |
| Memory | Supports up to 32 DDR5 memory modules, with a maximum speed of 5600MT/s, supports RDIMM, and a maximum memory capacity of 8TB |
| Storage Controller | Optional Tri-mode (NVMe/SAS/SATA) HPE Smart Array controller, up to 8GB cache Support SATA RAID 0/1/10/5 Support Intel VROC Optional built-in 2 M.2 solid state drives as hot-swappable operating system boot devices for raid1 (NS204i-u), optional 32GB Micro SD card |
| Storage | Supports up to 10 2.5-inch SAS/SATA/NVMe hard drives Supports up to 4 3.5-inch SAS/SATA hard disks Supports up to 20 EDSFF 3.S 1T NVMe hard drives or 10 EDSFF 3.S 2T NVMe hard drives Supports NVMe U.2, U.3, EDSFF, and M.2 SSDs |
| Network | Optional network adapter based on standard PCIe slot Optional OCP 3.0 network card |
| Expansion slots | Three PCIe 5.0 slots standard Supports 2 x16 OCP 3.0 slots |
| I/O | Optional front display port, optional serial port, standard 1 rear VGA 4 USB 3.2 ports (1 front, 2 rear, 1 built-in), 3 USB 2.0 ports (2 optional, 1 built-in) |
| GPU Support | Supports 3 single-width GPU cards |
| Manage | iLO Standard Edition is standard, iLO Advanced Edition and OneView Advanced Edition are optional Support HPE iLO 6, SUM, RESTful interface tools Support mobile application software APP |
| Power and Cooling | Optional up to 2200W 1+1 hot-swappable redundant power supply, supports up to 96% titanium; supports hot-swappable high-performance fans, supports intelligent cooling modules |
| Operating temperature | 5℃ – 45℃ |
| Chassis size | 1U standard chassis 42.9mm(H) x 434.6mm(W) x 753.1mm(D) (2.5-inch hard disk model) 42.9mm(H) x 434.6mm(W) x 773.1mm(D) (3.5-inch hard disk model) |
