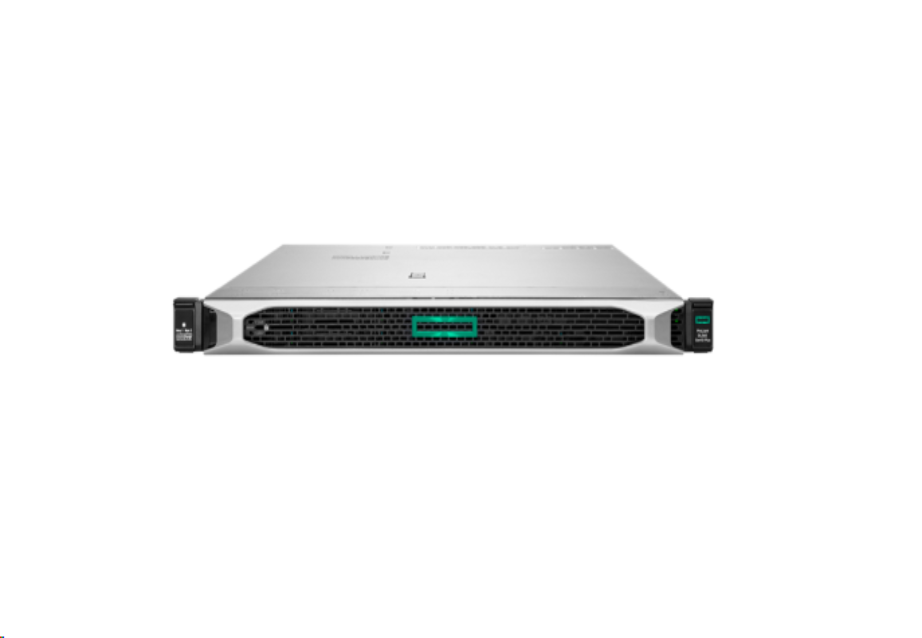

HPE ProLiant DL360 Gen10 Plus

share to:

The HPE ProLiant DL360 Gen10 Plus is a high-performance 1U rach-mounted server designed for enterprise-class workloads in demanding scenarios such as virtualization, cloud computing, and data centers. It uses the latest Intel Xeon scalable processors to deliver superior computing performance and energy efficiency. Supports dual M.2 SSDS and multiple storage configurations to meet high-density storage requirements. In addition, it has strong security and manageability, and integrates HPE iLO 5 remote management capabilities to ensure stable system operation and simplify operations. Whether you’re working with big data, running business-critical applications, or building a private cloud environment, DL360 Gen10 Plus provides reliable support.

Introduction

1、High scalability: Support for a variety of processor options, usually using Intel Xeon processors, can provide powerful computing power. It also supports multiple memory slots and supports high-capacity, high-bandwidth DDR4 or DDR5 memory to meet the needs of different workloads.

2、Flexible storage options: Supports multiple storage configurations, including internal hard disk drives (HDD) and solid-state drives (SSD), and can be optionally equipped with HPE’s intelligent array controller, supporting RAID functionality to ensure data security and high performance.

3、High availability design: Equipped with redundant power supplies, fans, and other key components, ensuring the system can still operate normally in the event of hardware failure.
Additionally, it supports hot-swappable functions, facilitating maintenance and upgrades.

4、Intelligent management: Equipped with HPE iLO (Intelligent Platform Management Interface) management tools, it enables remote monitoring, management, and troubleshooting, thereby reducing operation and maintenance costs.

5、Excellent performance: Through optimized hardware design and the latest processor technology, it can provide outstanding performance.
Reliability and Security: High availability design and data protection features ensure stable system operation, while supporting multiple security functions such as secure boot, firmware verification, etc.
Energy saving and efficient: Adopting energy-saving technology and optimized heat dissipation design to reduce power consumption and operating costs.

6、Processor: It usually supports the Intel Xeon Scalable Processor series, and the specific model can be selected according to the requirements.
Memory: Supports DDR4 or DDR5 memory with multiple capacities and speeds, expandable to higher capacities.
Storage: Supports multiple types of hard drives (SATA, SAS, NVMe SSD, etc.) and can be optionally equipped with HPE’s intelligent array controller.
Network: Supports multiple network interface card (NIC) options, including Gigabit Ethernet, 10G Ethernet, etc.

Specifications

CPU Supports up to 2 Intel® Xeon® 3rd Generation Scalable Processors, up to 40 cores, and a maximum power of 270W
Processor cache 24 MB to 60 MB L3, depending on processor model
Expansion slots Maximum 3 PCIe standard slots
Memory (max) Supports up to 32 memory slots, with a maximum capacity of 12.0 TB when using 256 GB DDR4 memory and 512 GB persistent memory
Memory protection function HPE Fast Fault Tolerant Memory; Advanced ECC Memory; Online Spare Memory; Mirrored Memory
Storage Controller 14 channels embedded 6Gb AHCI/RAID SATA
Intel VROC and HPE Smart Storage SR100i with NVMe
Optional memory controllers, including Tri-mode with increased performance or features
Optional M.2 master adapter card, supports HW RAID
Storage Up to 4 LFF SAS/SATA HDDs or SSDs; Up to 10 SFF SAS/SATA HDDs or SATA/SAS/NVMe U.2 or U.3 SSDs, depending on model
Network No embedded LOM, optional OCP 3.0 and standard PCIe network card
I/O Optional front VGA and serial port, standard rear VGA; 5 USB 3.0 (1 front, 2 rear, 2 internal); Optional 2 MicroSD
GPU Support Supports 2 single-width GPUs
Manage iLO Standard Edition is standard, iLO Advanced Edition and OneView Advanced Edition are optional
Power and Cooling Optional 500W/800W/1600W 1+1 hot-swappable redundant power supply, up to 96% titanium, hot-swappable redundant fan
Chassis dimensions (H x W x D) SFF: 4.29 x 43.46 x 76.96 cm; LFF: 4.29 x 43.46 x 80.01 cm
Weight SFF: 13.04 to 16.27 kg; LFF: 13.77 to 16.78 kg
