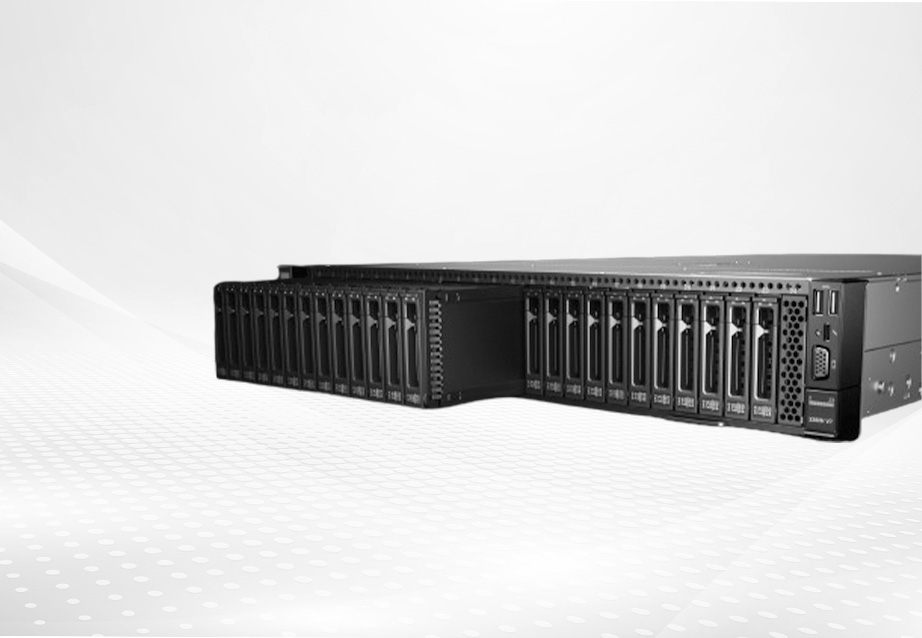

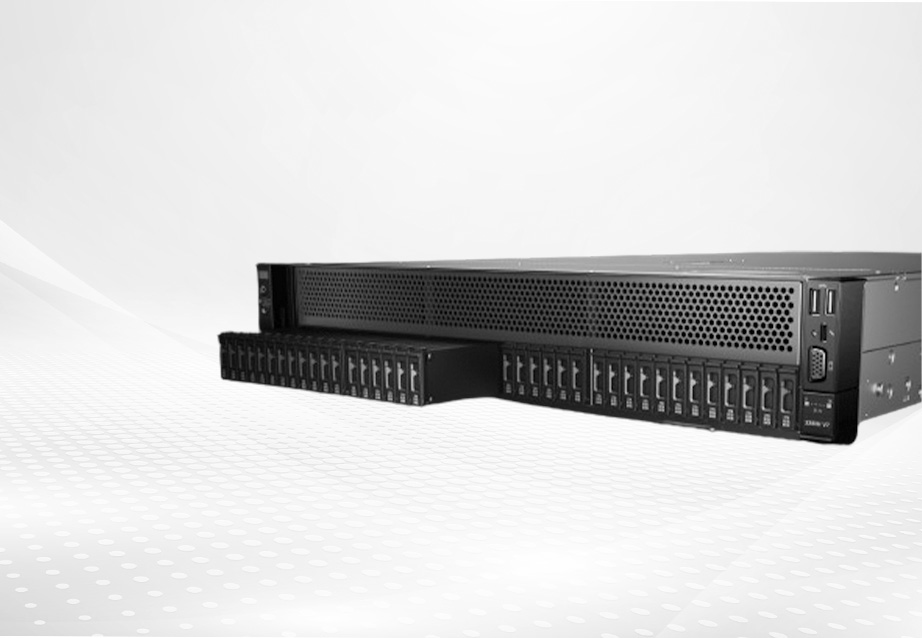

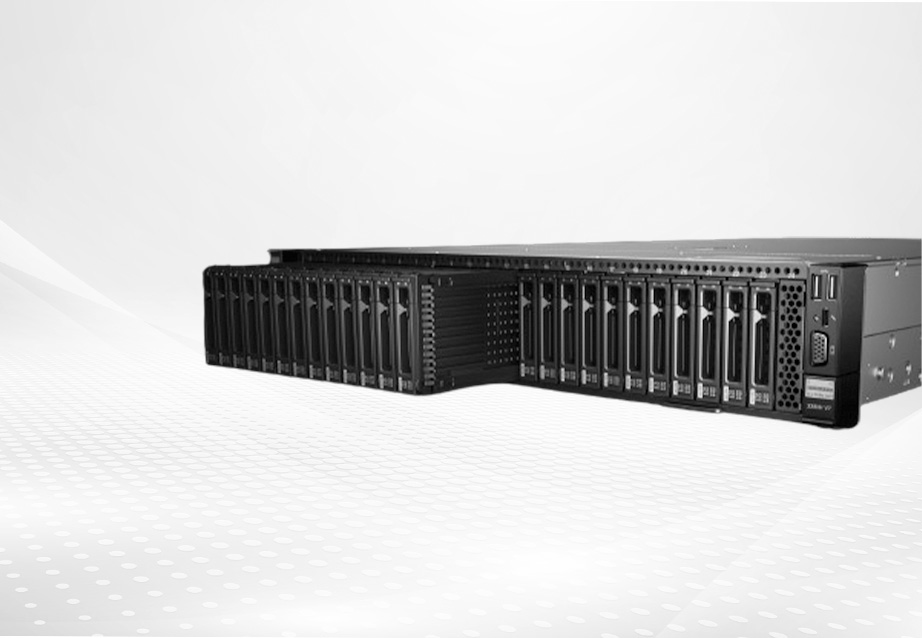

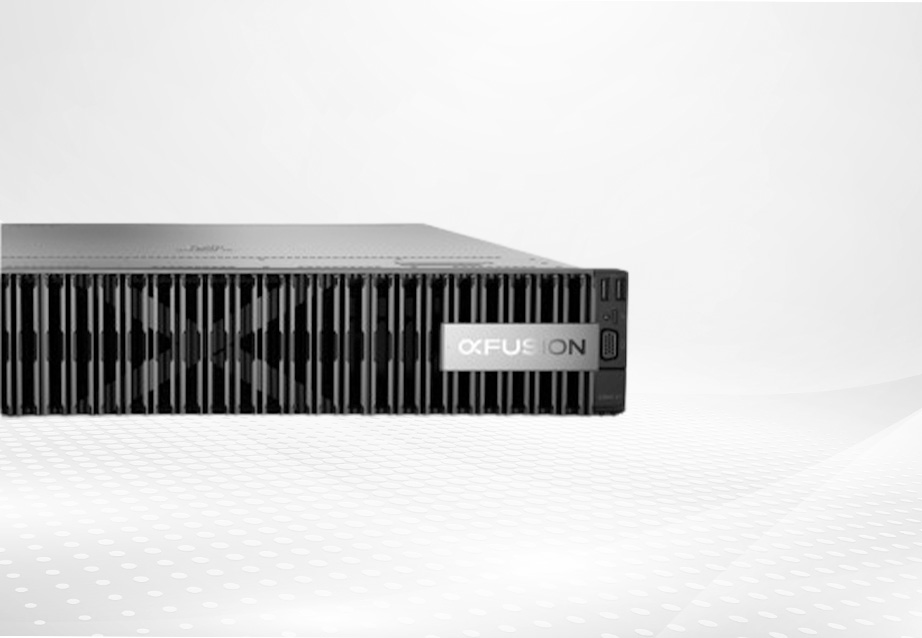

New-Generation 2U 2-Socket Rack Server
Main application scenarios:SDS、VDI、CDN、Virtualization、Big data、Database、Cloud scenarios、AI inference、Small businesses、OA、Web application
share to:
New-Generation 2U 2-Socket Rack Server
Main application scenarios:SDS、VDI、CDN、Virtualization、Big data、Database、Cloud scenarios、AI inference、Small businesses、OA、Web application
1、New-Generation 2U 2-Socket Rack Server
Main application scenarios:SDS、VDI、CDN、Virtualization、Big data、Database、Cloud scenarios、AI inference、Small businesses、OA、Web application
2、Up to 50% Better Overall Performance
4th or 5th Gen Intel® Xeon® Scalable processors with 385 W TDP per processor,
and 32 x DDR5 DIMMs, scalable to 48 x DIMM slots through CXL
3、100% Higher PCIe Bandwidth for High-Speed Interconnection
PCIe 5.0 protocol and 17 x standard PCIe slots ensure flexible configuration
4、50% Better Heat Dissipation Capability Than a Single Heat Sink
Heat pipe remote heat dissipation technology ensures reliable heat dissipation and stronger temperature adaptation
5、66% Less System Downtime
Unique AI memory fault self-healing ensures stable system running
6、Saving Energy by up to 8% Compared with the Industry Average
The unique algorithm is provided for the lowest power consumption of fans and CPUs
7、Intelligent Service Awareness, Dynamic Load Adjustment
The CPU working frequency is dynamically adjusted based on the actual service load
8、Industry-leading Power Supply Technology for Higher Efficiency
Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the industry average
9、①20x Higher Upgrade Efficiency
Automatic version push and upgrades can be completed without onsite attendance
②10x Higher Deployment Efficiency
75% streamlined deployment steps are performed by tools
③100% Accuracy for Asset Stocktaking
Supports takeover of all vendors’ servers, automatic asset location identification, and real-time tracking
| Form Factor | 2U rack server |
| Processor | 1 or 2 x 4th or 5th Gen Intel® Xeon® Scalable processors with TDP up to 385 W per processor |
| Chipset | Emmitsburg PCH |
| Memory | 32 x 5600 MT/s DDR5 DIMMs and 16 x DDR5 or DDR4 DIMMs supported by the CXL technology; up to 48 x DIMMs* |
| Local Storage | Hot-swappable drives with the following configuration options are supported: • 8 to 35 x 2.5ʺ SAS/SATA/SSD drives • 12 to 20 x 3.5ʺ SAS/SATA drives • 4/8/16/24 x NVMe SSDs • 36 x E1.S SSDs* • Up to 45 x 2.5ʺ drives, or 34 x full NVMe SSDs • 2 x M.2 SSDs, hardware RAID, and hot swap |
| RAID | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Network | Expansion capability of multiple types of networks OCP 3.0 NICs are supported. Both two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap is supported |
| PCIe Expansion | Up to 19 x PCIe slots: 2 x FlexIO slots dedicated for OCP 3.0 NICs and 17 x standard PCIe expansion slots, 14 slots of which support PCIe 5.0 |
| GPU Card | 4 x dual-width or 14 x single-width GPU cards |
| Fan Module | 4 x hot-swappable counter-rotating fans in N+1 redundancy |
| Power Supply | 900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy |
| Management | The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management • It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle |
| OS | FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler . |
| Security | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection |
| Operating Temperature | 5ºC to 50ºC (41ºF to 122ºF), compliant with ASHRAE Classes A1, A2, A3, and A4 |
| Certification | CE, UL, CCC, FCC, VCCI, and RoHS |
| Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) | Chassis with 3.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) Chassis with 2.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) |
