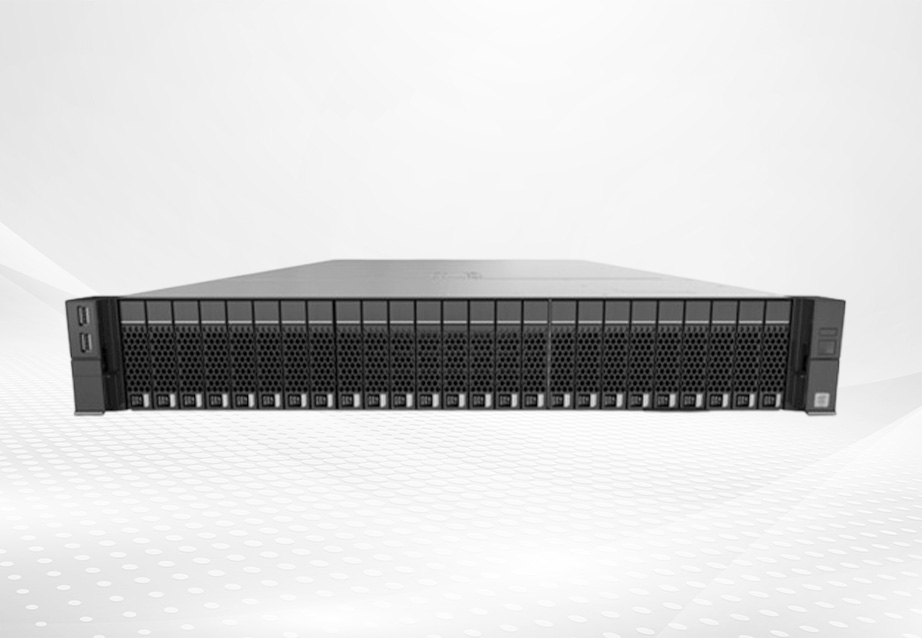

The FusionServer 2288H V5 is an a 2U, 2-socket rack server. FusionServer 2288H V5 has been verified by Intel as an Intel® Select Solution for NFVI and it supports the configuration of over 100 types of resources with just one model, flexibly meeting the hardware resource requirements of diverse workloads. It is an ideal choice for diverse applications, such as cloud computing, virtualization, databases, HPC, and big data processing.
The FusionServer 2288H V5 is an a 2U, 2-socket rack server. FusionServer 2288H V5 has been verified by Intel as an Intel® Select Solution for NFVI and it supports the configuration of over 100 types of resources with just one model, flexibly meeting the hardware resource requirements of diverse workloads. It is an ideal choice for diverse applications, such as cloud computing, virtualization, databases, HPC, and big data processing.
1、Optimally Balanced Configuration with Ultra-Large Storage
Powered by Intel® Xeon® Scalable processors, supports 24 DDR4 DIMMs and up to 20 x 3.5-inch or 31 x 2.5-inch local hard drives
2、Smart Power Savings and Better Energy Efficiency
Leverages patented DEMT for smart power management, slashes power consumption by up to 15% without affecting performance, and uses 80 Plus® Titanium PSUs for better energy utilization
3、Unmatched Intelligent Manageability and Openne
Supports smart O&M across the entire lifecycle and FDM for diagnosis with accuracy of up to 93%
Provides standardized and open interfaces, facilitating integration with third-party management software
| Parameter | Description |
| Model | FusionServer 2288H V5 |
| Form Factor | 2U, 2-socket rack server |
| Processors | 1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205W 1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W |
| Memory | 24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666 MT/s |
| Internal Storage | Supports hot-pluggable drives with the following configuration options: 8 x 2.5-inch SAS/SATA HDDs or SSDs 12/16/20 x 3.5-inch SAS/SATA HDDs 4, 8, 12, 24, or 28 NVMe SSDs 31 x 2.5-inch SAS/SATA HDDs or SSDs Flash storage: 2 M.2 SATA SSDs, hot swappable, hardware RAID |
| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60 Configured with a supercapacitor for cache power-off protection (optional) RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| Network Ports | LOM: 2 x 10 GE + 2 x GE ports Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports |
| PCIe Expansion | Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC |
| Heterogeneous Accelerator Card | Up to 7 single-width half-height half-length accelerator cards Up to 2 dual-width full-height full-length accelerator cards |
| Fan Modules | 4 hot-swappable fan modules with optional N+1 redundancy |
| Power Supply Units | 2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: 550W AC Platinum PSUs 900W AC Platinum/Titanium PSUs 1,500W AC Platinum PSUs 1,500W 380V HVDC PSUs 1,200W -48V to -60V DC PSUs |
| Management | BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management |
| Operating Temperature | 5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant |
| Certifications | CE, UL, FCC, CCC, and RoHS |
| Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Dimensions (H x W x D) | Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.) |
