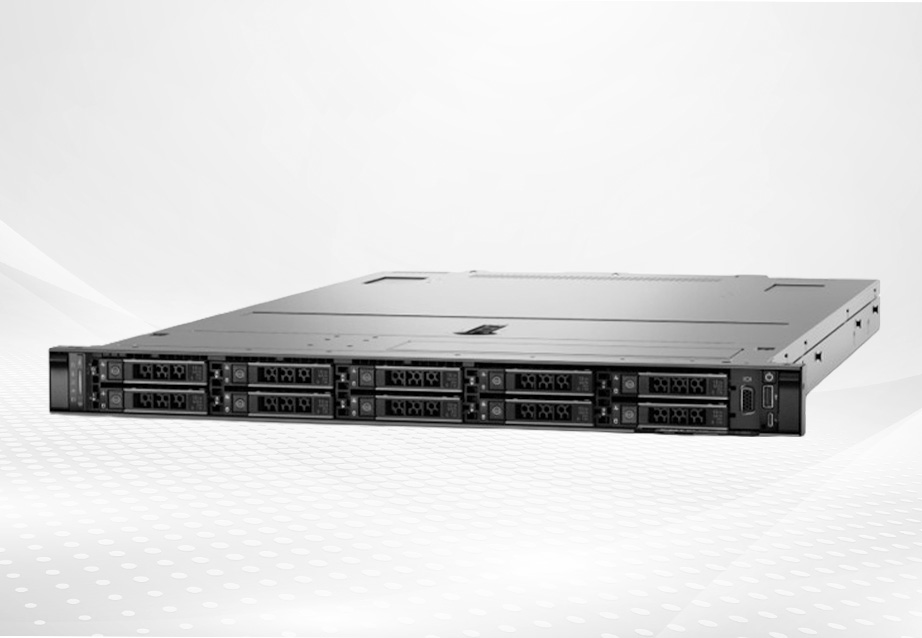

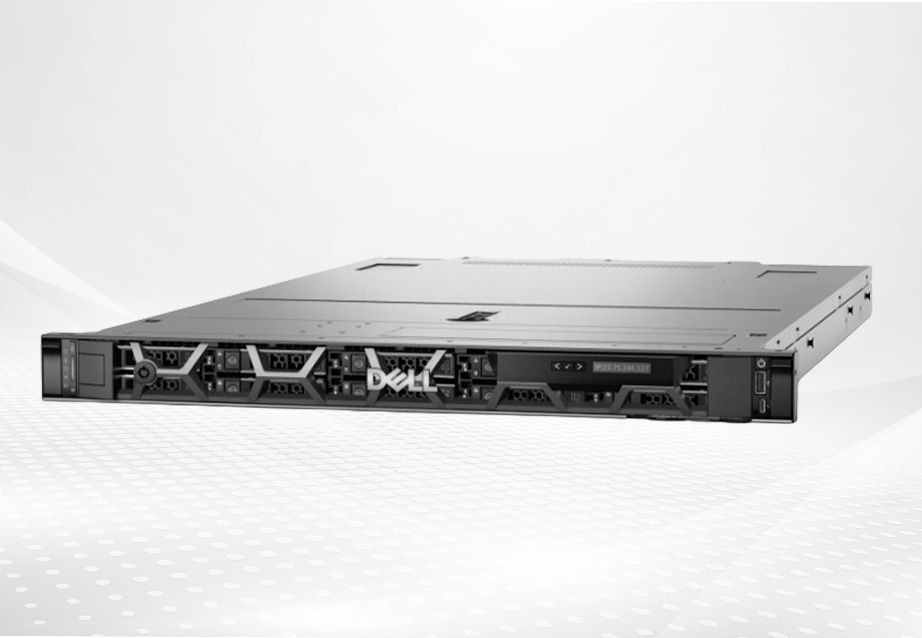

Dell PowerEdge R650
Dell PowerEdge R650
Dell PowerEdge R650
Dell PowerEdge R650
Dell PowerEdge R650
Dell PowerEdge R650

Dell PowerEdge R650

share to:

The Dell PowerEdge R650, is a full-featured enterprise server, designed to optimize workloads performance and data center density

Chat Now Contact
Introduction Specifications Gallery Related Products

Introduction

1.The Dell PowerEdge R650, is a full-featured enterprise server, designed to optimize workloads performance and data center density

  • The Dell PowerEdge R650, powered by the 3rd Generation Intel® Xeon® Scalable processors is the optimal rack server to address application performance and acceleration. The PowerEdge R650, is a dual-socket/1U rack server that delivers outstanding performance for the most demanding workloads. It supports 8 channels of memory per CPU,and up to 32 DDR4 DIMMs @ 3200 MT/s speeds. In addition, to address substantial throughput improvements the PowerEdge R650 supports PCIe Gen 4 and up to 12 NVMe drives with improved air-cooling features and optional Direct Liquid Cooling to support increasing power and thermal requirements. This makes the PowerEdge R650 an ideal server for data center standardization on a wide range of workloads including; Database and Analytics, HighFrequency Trading, Traditional corporate IT, Virtual Desktop Infrastructure, and even HPC or AI/ML environments that require performance, and GPU support in a dense 1U form factor.

3、The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.

  • Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility andcontrol for better server management
  • Intelligent automation lets you enable cooperation between human actions and system capabilities for addedproductivity
  • Integrated change management capabilities for update planning and seamless, zero-touch configuration andimplementation
  • Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools

4、The Dell PowerEdge R650 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.

  • Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
  • Maintain server firmware safety with digitally signed firmware packages
  • Prevent unauthorized configuration or firmware change with system lockdown
  • Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase

Specifications

Processor Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor
Memory • 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s
• Up to 16 Intel Persistent Memory 200 series (BPS) slots, 12 TB max
• Supports registered ECC DDR4 DIMMs only
Storage controllers Internal controllers: PERC H745, HBA355I, S150, H355, H345, H755, H755N
• Boot Optimized Storage Subsystem (BOSS-S1): HW RAID 2 x M.2 SSDs 240 GB or 480 GB
• Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB
• External PERC (RAID): PERC H840, HBA355E
Drive Bays Front bays:
• Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB
• Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB
Rear bays:
• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB
Power Supplies • 800 W Platinum AC/240 Mixed Mode
• 1100 W Titanium AC/240 Mixed Mode
• 1400 W Platinum AC/240 Mixed Mode
• 1800 W Titanium AC/240 Mixed Mode
• 1100 W DC -48 – 60 V
Cooling Options Air cooling, optional processor liquid cooling
Fans • Standard fan/High performance SLVR fan/High performance GOLD fan
• Up to four sets (dual fan module) hot plug fans
Dimensions • Height – 42.8 mm (1.7 inches)
• Width – 482 mm (18.97 inches)
• Depth – 758.27 mm (29.85 inches) – without bezel
 772.11 mm (30.39 inches) – with bezel
Form Factor 1U rack server
Embedded Management • iDRAC9
• iDRAC Service Module
• iDRAC Direct
• Quick Sync 2 wireless module
Bezel Optional LCD bezel or security bezel
OpenManage Software • OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage SupportAssist plugin
• OpenManage Update Manager plugin
Mobility OpenManage Mobile
Integrations and
Connections		 OpenManage Integrations
• BMC Truesight
• Microsoft System Center
• Red Hat Ansible Modules
• VMware vCenter and vRealize Operations Manager		 OpenManage Connections
• IBM Tivoli Netcool/OMNIbus
• IBM Tivoli Network Manager IP Edition
• Micro Focus Operations Manager
• Nagios Core
• Nagios XI
Security • Cryptographically signed firmware
• Secure Boot
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 1.2/2.0 FIPS, CC-TCG certified, TCM 2.0 optional
Embedded NIC 2 x 1 GbE LOM
Network options 1 x OCP 3.0 (x8 PCIe lanes)
GPU options Up to three 75 W single-width GPU
Ports Front Ports
• 1 x Dedicated iDRAC Direct micro-USB
• 1 x USB 2.0
• 1 x VGA
Internal Ports:
• 1 x USB 3.0		 Rear Ports:
• 1 x Dedicated BMC Ethernet port
• 1 x VGA
• 2 x USB 3.1 Type A ports
PCIe Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAP I/O modules) or 2 x PCIe (Gen4) full height slots
Operating System and
Hypervisors		 • Canonical Ubuntu Server LTS
• Citrix Hypervisor
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi
