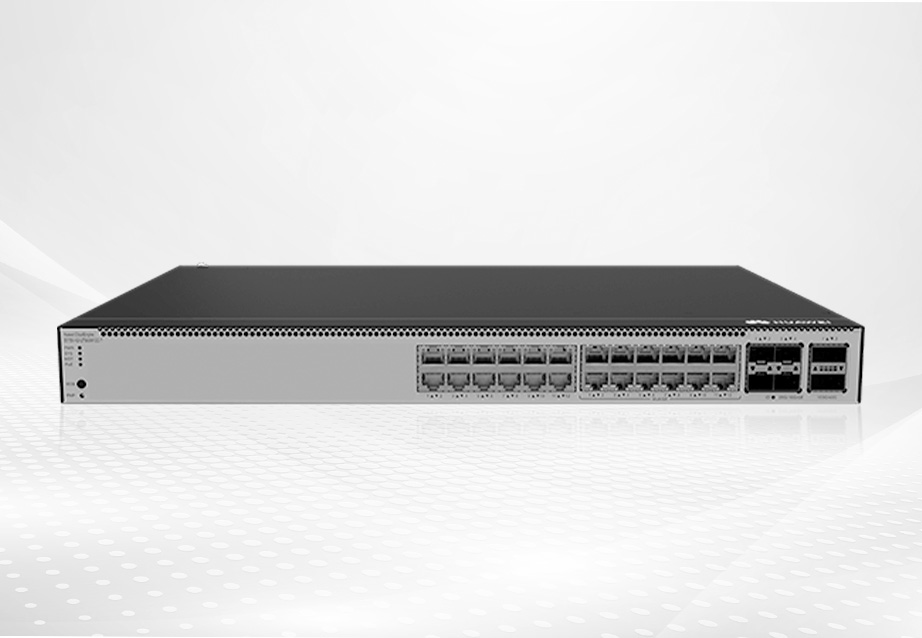

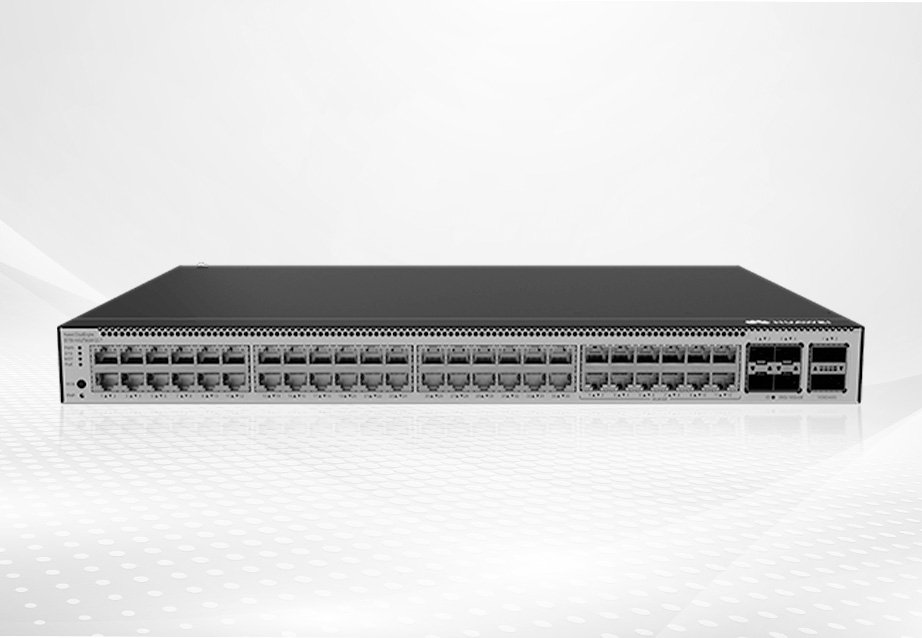

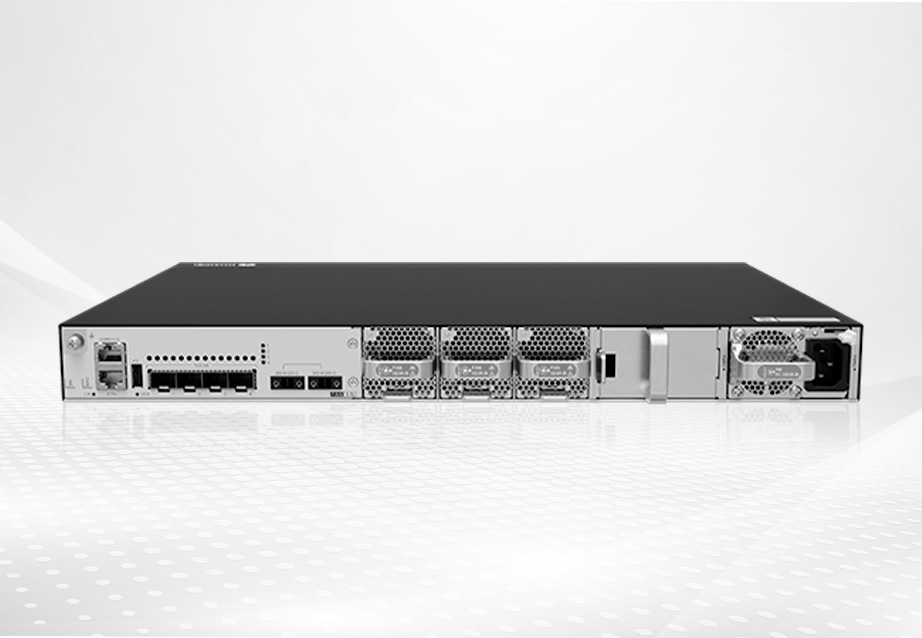

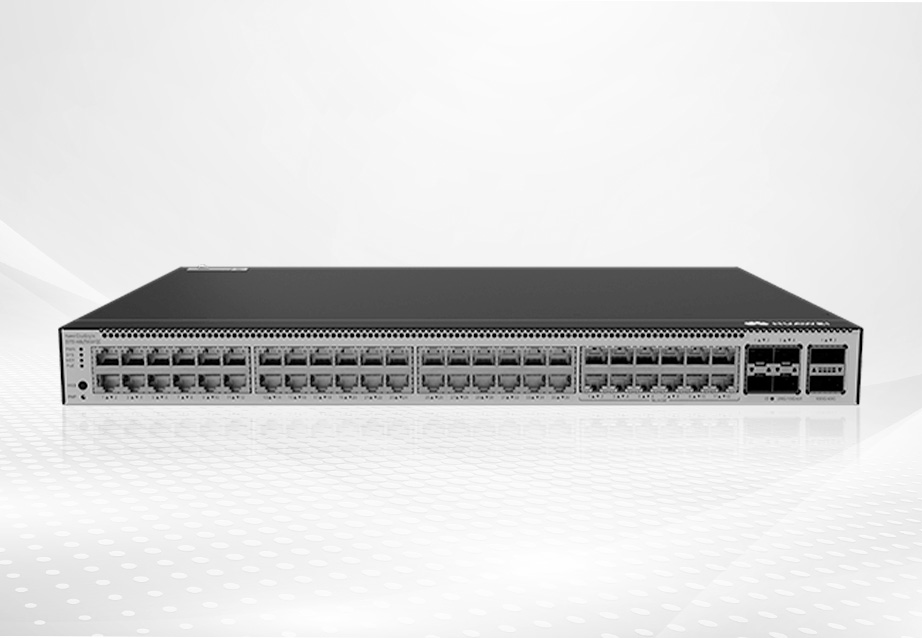

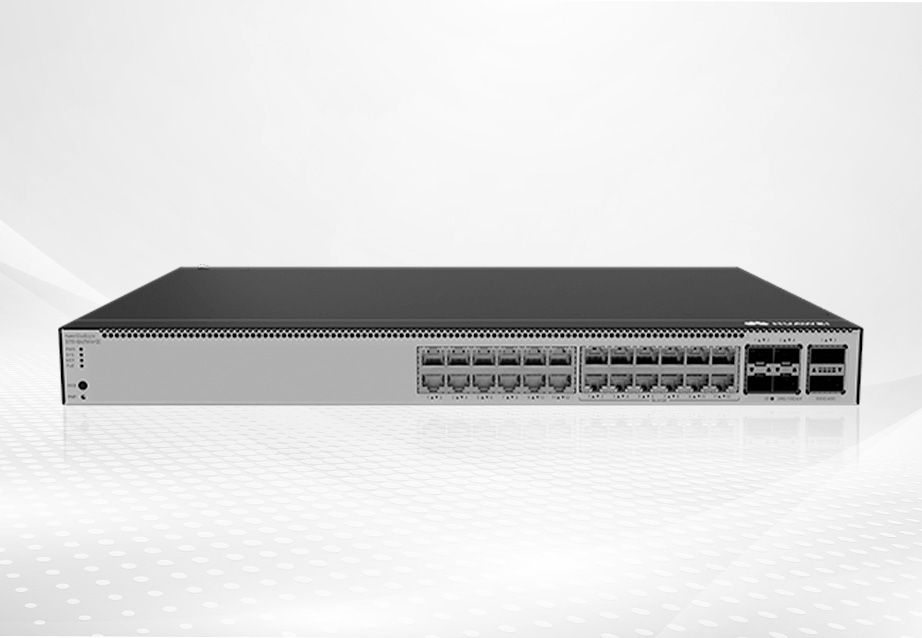

Huawei CloudEngine S5755-H series switches are high-quality gigabit access switches that provide 24 or 48 10/100/1000BASE-T downlink ports, four 25GE plus two 100GE uplink ports, and expansion card slots.
Huawei CloudEngine S5755-H series switches are high-quality gigabit access switches that provide 24 or 48 10/100/1000BASE-T downlink ports, four 25GE plus two 100GE uplink ports, and expansion card slots.
By leveraging Huawei’s unified software platform, CloudEngine S5755-H series creates a multi-purpose network through VXLAN-based network virtualization. The series also stands out for free mobility that delivers consistent user experience anywhere, anytime. A maximum of 48 downlink ports and MACsec support on all ports make CloudEngine S5755-H the best choice of access switches for the Wi-Fi 6 and Wi-Fi 7 era. With these merits, CloudEngine S5755-H series can be widely used in healthcare, retail, mining, Internet Service Provider (ISP), and other industries.
| Product Model | CloudEngine S5755-H24T4Y2CZ | CloudEngine S5755-H24P4Y2CZ | CloudEngine S5755-H24U4Y2CZ | CloudEngine S5755-H48T4Y2CZ | CloudEngine S5755-H48P4Y2CZ | CloudEngine S5755-H48U4Y2CZ |
| Forwarding Performance | 450Mpps | 450Mpps | 450Mpps | 450Mpps | 450Mpps | 450Mpps |
| Switching Capacity2 | 648 Gbps/2.32 Tbps | 648 Gbps/2.32 Tbps | 648 Gbps/2.32 Tbps | 696 Gbps/2.32 Tbps | 696 Gbps/2.32 Tbps | 696 Gbps/2.32 Tbps |
| Fixed Ports | 24 × 10/100/1000 Base-T Ethernet ports, 4 x 1/10/25GE SFP28, 2 x 40/100GE QSFP28 ports | 48 × 10/100/1000 Base-T Ethernet ports, 4 x 1/10/25GE SFP28, 2 x 40/100GE QSFP28 ports | ||||
| PoE | / | Supported, PoE+ | Supported, 60W PoE++ | / | Supported, PoE+ | Supported, 60W PoE++ |
| Power Supply Type | 1+1 power supply backup | 3 power supplies, N+1 power supply backup | 3 power supplies, N+1 power supply backup | 1+1 power supply backup | 3 power supplies, N+1 power supply backup | 3 power supplies, N+1 power supply backup |
| Expanded Card Slot | Reserved expanded card slot | |||||
| MAC Features | IEEE 802.1d compliance Automatic MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
|||||
| iPCA | Directly coloring service packets to collect real-time statistics on the number of lost packets and packet loss ratio Collecting real-time statistics on the number of lost packets and packet loss ratio at network and device levels |
|||||
| VXLAN | VXLAN Layer 2 and Layer 3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol |
|||||
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
|||||
